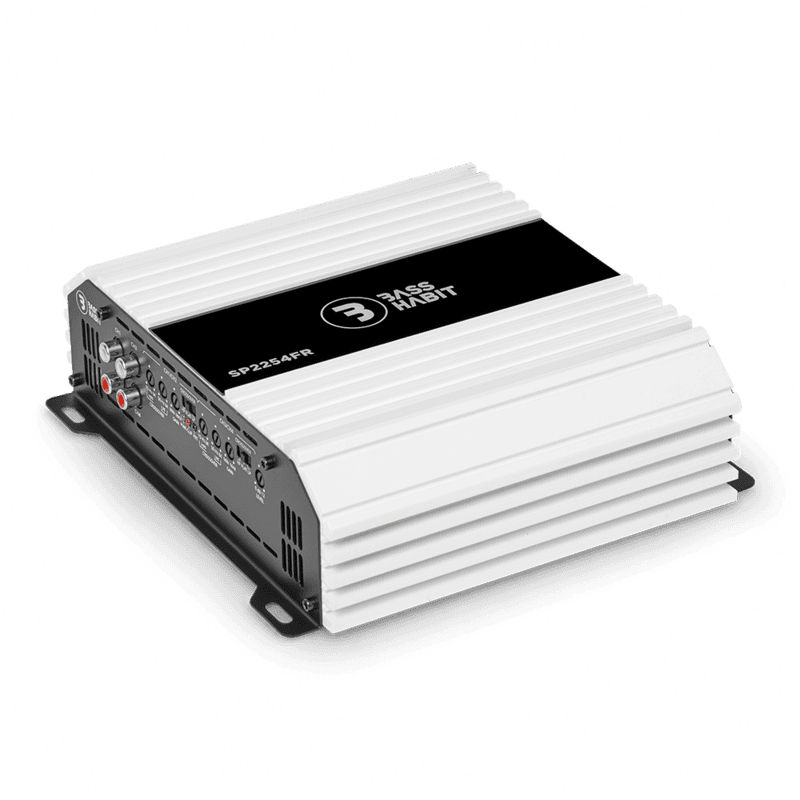

Bass Habit SPL Play SP2254FR

The Bass Habit SPL Play SP2254FR is a powerful 4-channel Class D amplifier designed specifically for demanding car audio and SPL applications. With up to 4 x 225 watts RMS at 1 ohm, this compact power amplifier delivers ample power for midrange speakers, mid-bass drivers, tweeters, and high-performance speaker systems.

Thanks to the built-in, adjustable high-pass and low-pass filters, the connected speakers can be precisely tuned to their respective frequency ranges. The filters extend up to 6,000 Hz, allowing midrange and tweeter drivers to operate without additional passive crossovers. In bridge mode, the amplifier delivers up to 2 x 480 watts RMS into 2 ohms.

The solid heat sink housing ensures efficient heat dissipation, while the illuminated Bass Habit logo plate accentuates the modern design. An integrated 5-stage protection system safeguards the power amplifier against overload, overheating, DC voltage faults, and short circuits. This makes the SP2254FR suitable for both high-performance everyday systems and large-scale SPL speaker installations.

Technical Specifications

General Characteristics

• Manufacturer: Bass Habit

• Model: SPL Play SP2254FR

• Series: SPL Play

• Amplifier Type: Class D Full-Range

• Number of channels: 4

• 1-ohm stable per channel

• Can be bridged to 2 channels

• Frequency range: 15 – 20,000 Hz

• Signal-to-noise ratio: 100 dB

• Input sensitivity: 0.2 – 5 V

• Operating voltage: 10–16 V DC

• RCA inputs: 2 pairs

• Power connection: up to 20 mm²

• Recommended external fuse rating: 100 A



RMS Power

• 4 x 90 watts RMS at 4 ohms

• 4 x 160 watts RMS at 2 ohms

• 4 x 225 watts RMS at 1 ohm



RMS Power in Bridge Mode

• 2 x 320 watts RMS at 4 ohms

• 2 x 480 watts RMS at 2 ohms



Maximum Power

• 4 x 450 watts MAX

• Total power: 1,800 watts MAX

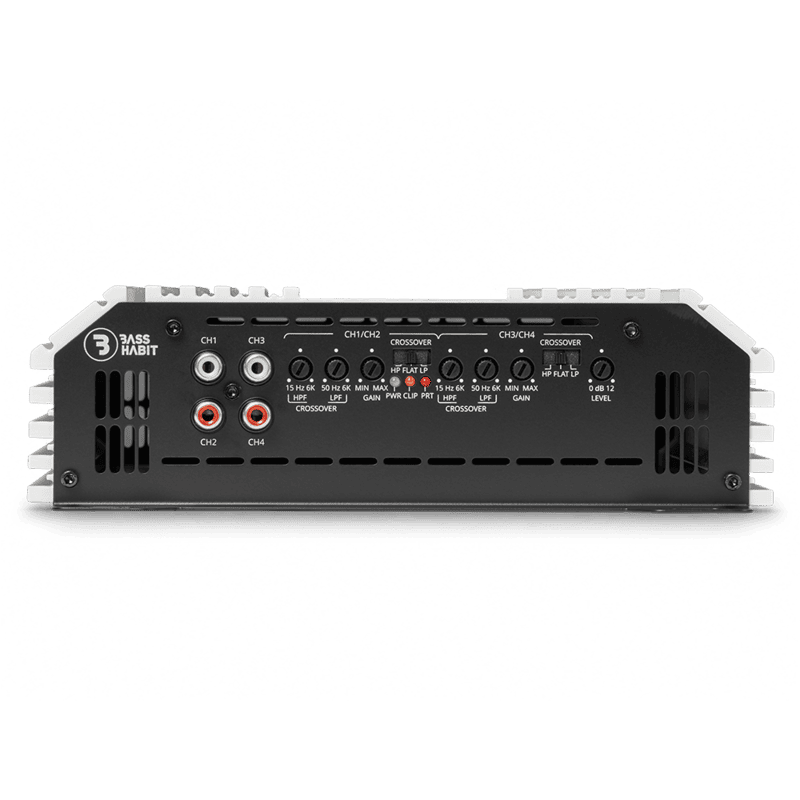

Crossover Networks and Sound Settings

• High-pass filter (HPF): 15 – 6,000 Hz, adjustable

• Low-pass filter (LPF): 50–6,000 Hz, adjustable

• Filter slope: 12 dB/octave

• Bass Boost: 0 to +12 dB

• Bass boost frequency: 45 Hz



Protective Features

• Short-Circuit Protection for Speaker Outputs

• Short-Circuit Protection for Power Supplies

• Overload Protection

• Overheating Protection

• DC Protection



Dimensions

• Width: 208 mm

• Height: 61 mm

• Depth: 204 mm

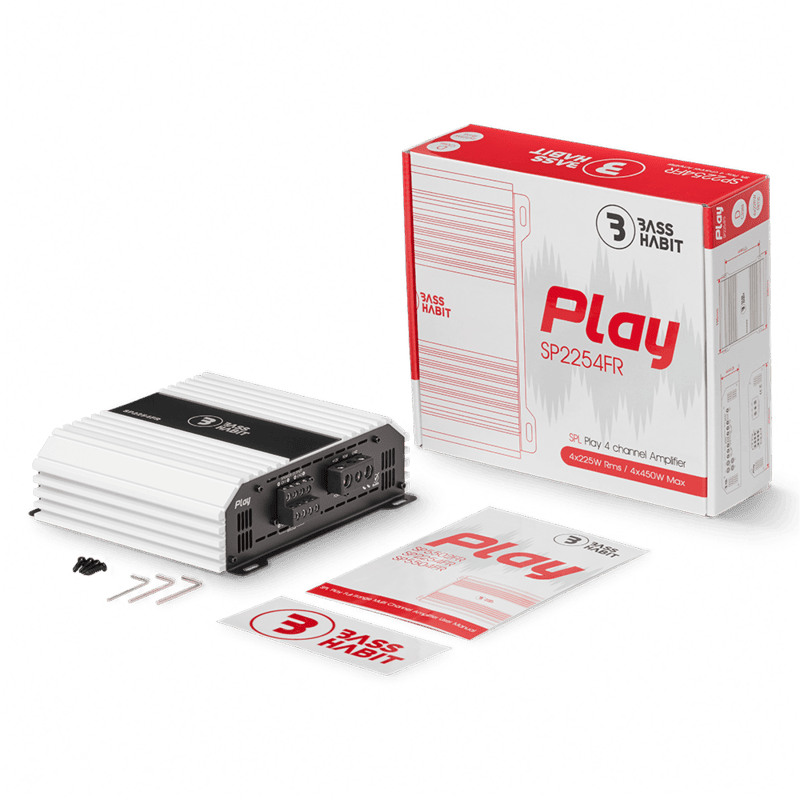

What's Included

• 1 x Bass Habit SPL Play SP2254FR 4-Channel Amplifier

• User Manual
