Phoenix Gold ZQ-ELITE.3

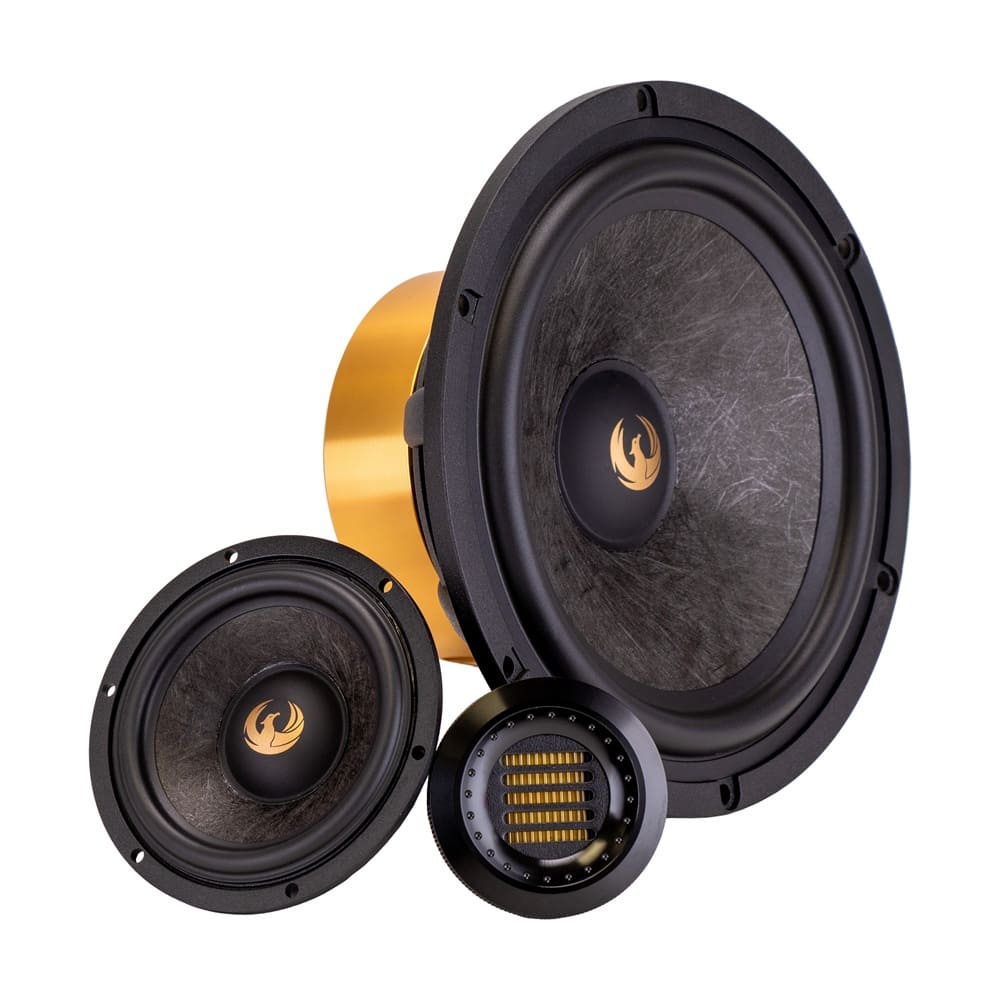

Phoenix Gold ZQ-ELITE.3 - 3-Way High-End Sound System (Limited Edition)

The Phoenix Gold ZQ-ELITE.3 is an uncompromising 3-way high-end sound system for demanding car audio enthusiasts looking for maximum sound precision and exclusivity. Developed by Phoenix Gold, this system combines audiophile technology with first-class workmanship - and is limited to just 100 units worldwide.

Thanks to the precisely matched components, the ZQ-ELITE.3 delivers an exceptionally clear, natural sound image across the entire frequency spectrum. Finely resolved highs, precise mids and a powerful, controlled kick bass ensure an impressive listening experience even at high levels.

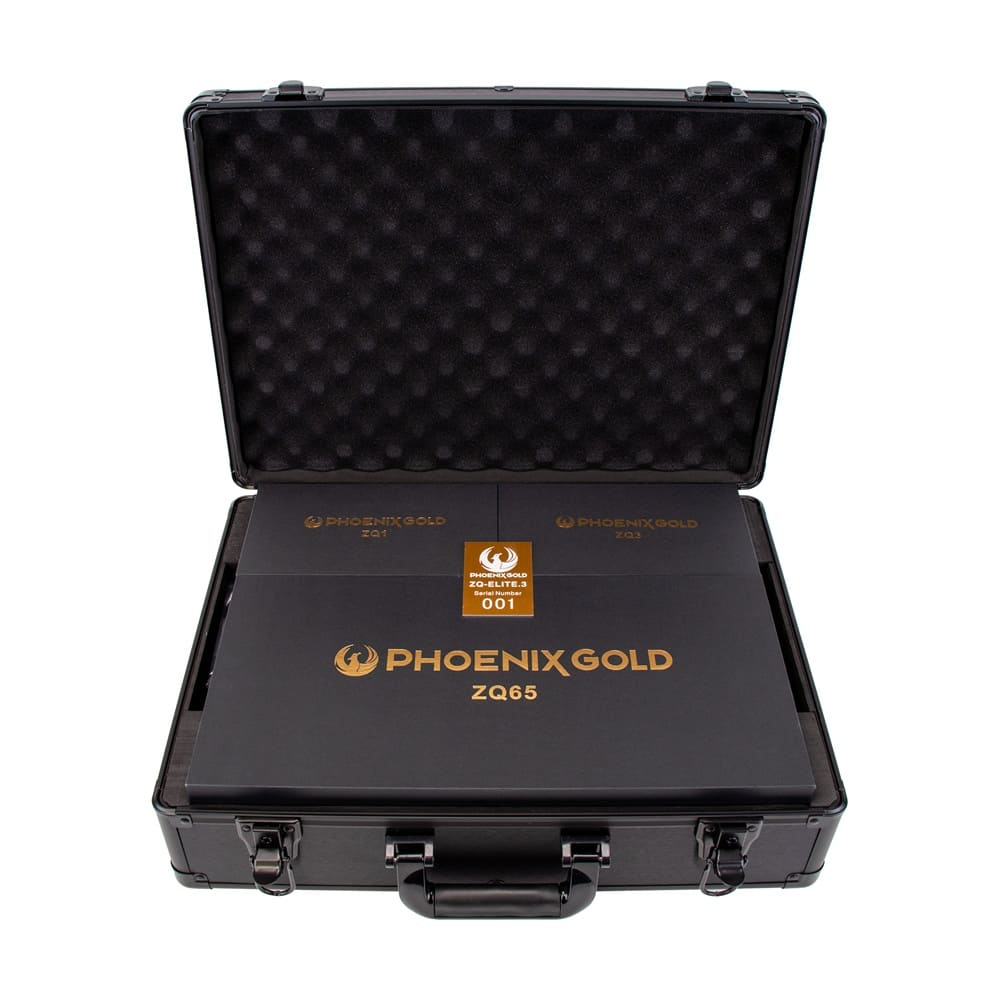

Limited edition - true exclusivity
This sound system is part of a strictly limited special edition. Only 100 units of the Phoenix Gold ZQ-ELITE.3 were produced worldwide. This system is therefore not only aimed at sound purists, but also at collectors and lovers of exclusive car audio components.

Highlights & advantages

• 3-way system for maximum sound resolution and realistic stage
• stage imaging

• Limited edition - only 100 units worldwide

• High-quality materials for maximum precision and durability

• Extremely detailed highs and clean, natural mids

• Ideal for sound quality installations and competition vehicles
• Dynamic and controlled mid/bass range

Who is the ZQ-ELITE.3 suitable for?
The Phoenix Gold ZQ-ELITE.3 is aimed at car audio enthusiasts who do not accept compromises and value absolute sound fidelity and exclusivity. Perfect for high-end installations, show cars or vehicles where sound quality is the top priority.

Conclusion:
With the Phoenix Gold ZQ-ELITE.3, you get an exceptional 3-way sound system in a strictly limited edition that combines reference sound, exclusive manufacturing and collector's value in one product.

Specifications - Phoenix Gold ZQ-ELITE.3

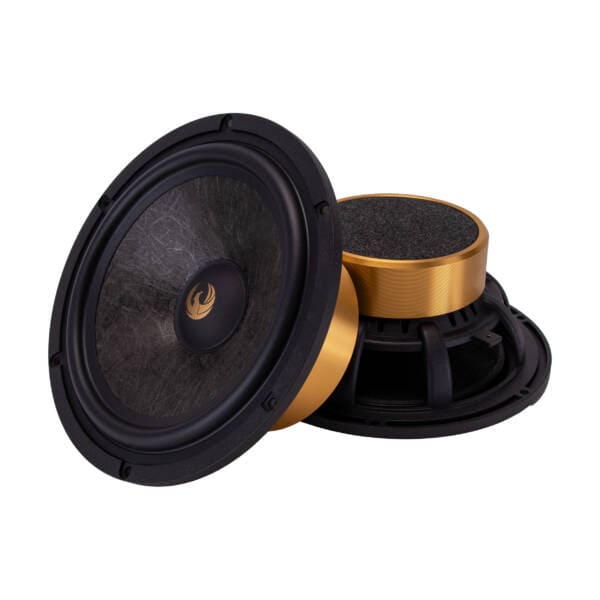

ZQ65 bass-midrange driver (6.5")

• Speaker type: Midbass

• Speaker size: 6.5 inch (165 mm)

• Frequency response: 45 Hz - 8,000 Hz

• Power handling (RMS): 80 W

• Power handling (MAX): 160 W

• Impedance: 4 Ohm

• Sensitivity: 87.7 dB



Materials & Construction:

• Diaphragm: Carbon fiber composite

• surround: rubber

• Magnet: 17 ounces

• Voice coil: 1.2 inch (30 mm)




Dimensions:

• Mounting depth: 65 mm

• Mounting diameter: 145 mm

• Outer diameter: 173 mm



Important parameters:

• Re: 3.6 Ohm

• Fs: 57.92 Hz

• Xmax: 2.65 mm

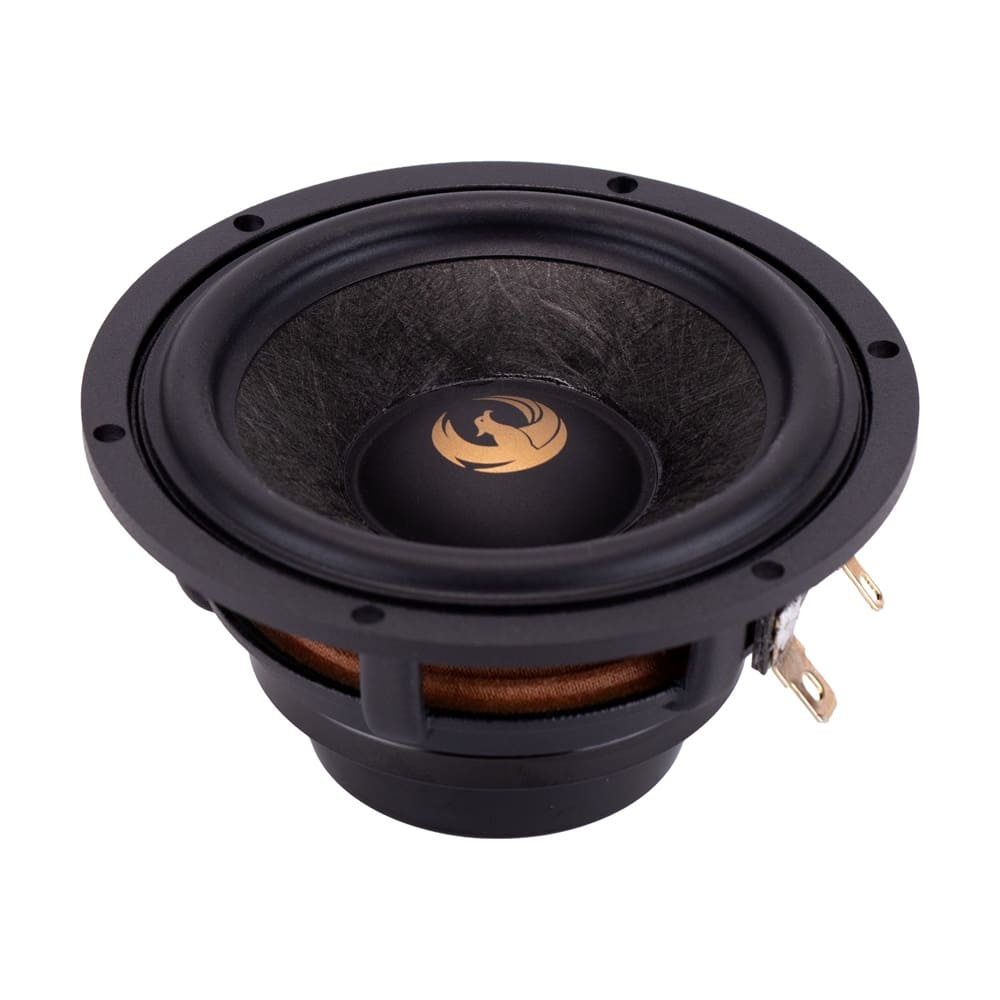

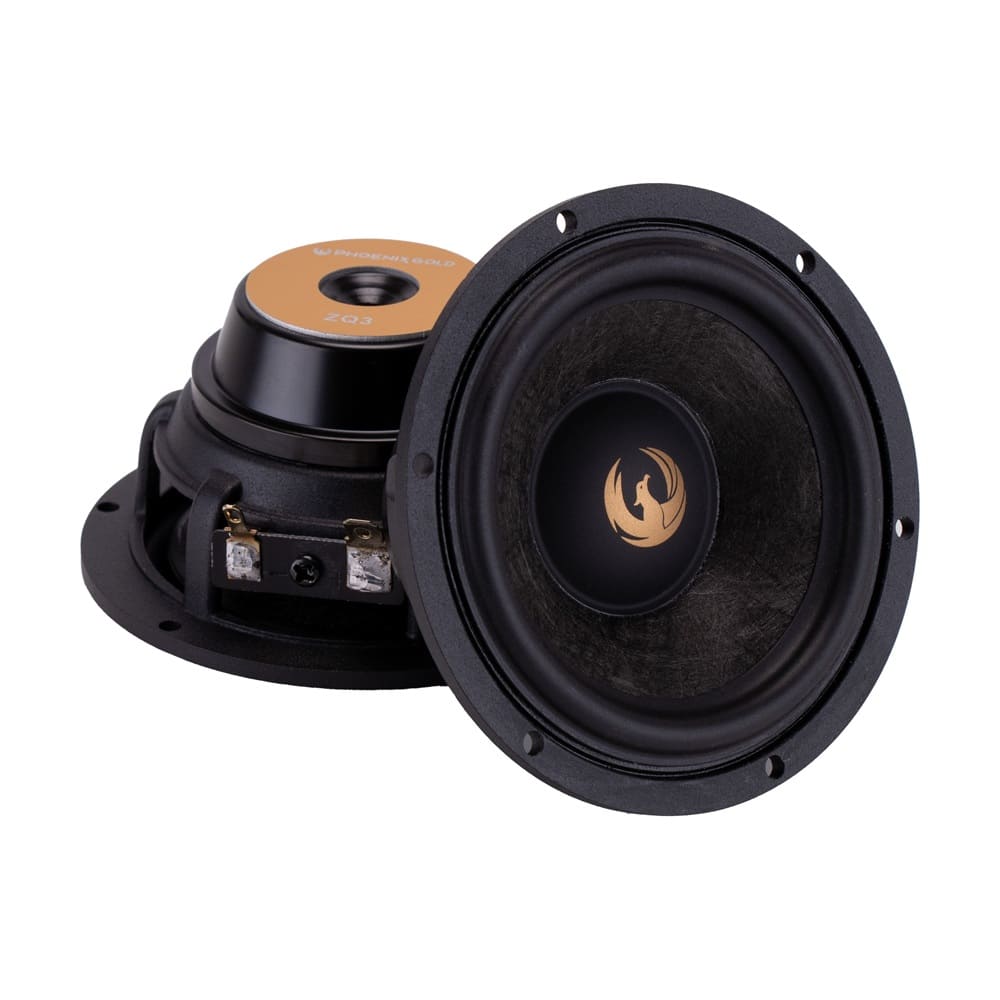

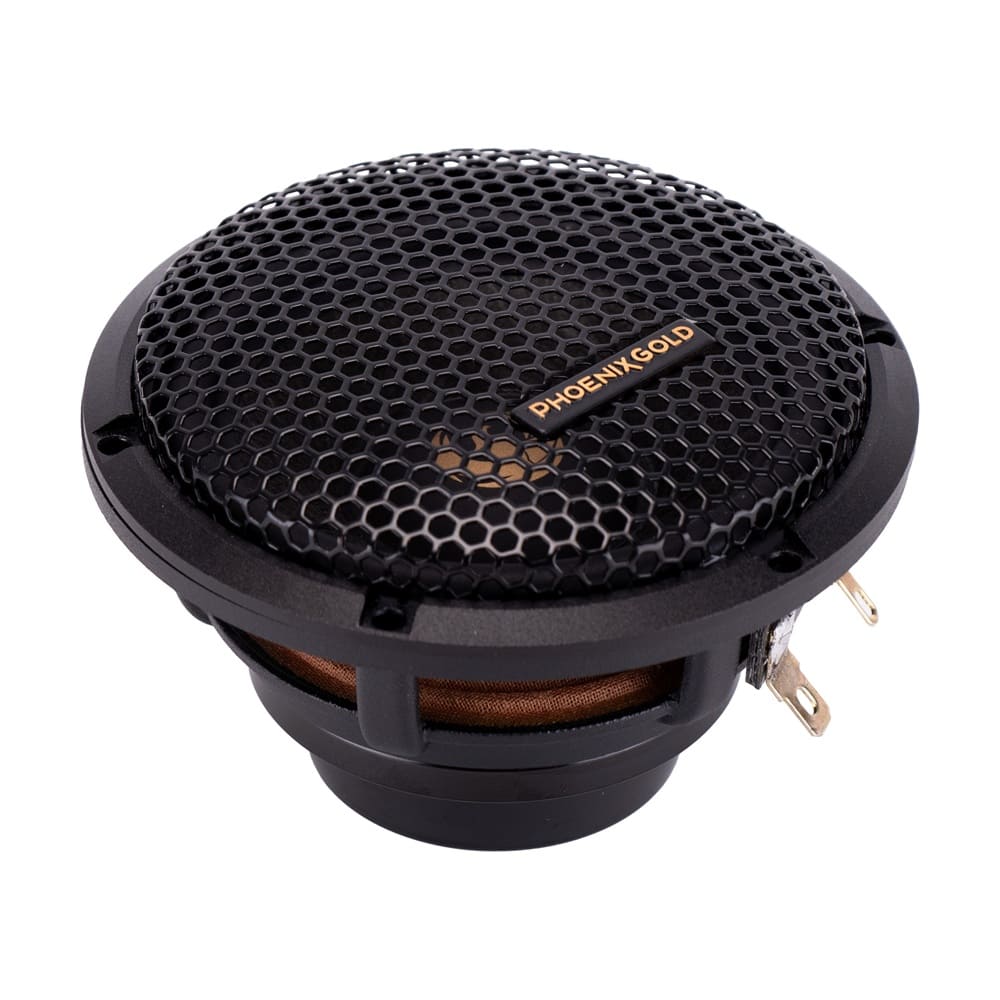

ZQ3 midrange driver (3")

• Speaker type: Midrange driver

• Speaker size: 3 inch (76 mm)

• Frequency response: 100 Hz - 10 kHz

• Power handling (RMS): 40 W

• Power handling (MAX): 80 W

• Impedance: 4 Ohm

• Sensitivity: 80.4 dB



Materials & Construction:

• Diaphragm: Carbon fiber composite

• surround: rubber

• Magnet: Neodymium

• Voice coil: 1 inch (25 mm)


Dimensions:

• Mounting depth: 42 mm

• Mounting diameter: 72.5 mm

• Outer diameter: 87 mm



Important parameters:

• Re: 3.6 Ohm

• XMax: 2.1mm
• Fs: 107 Hz

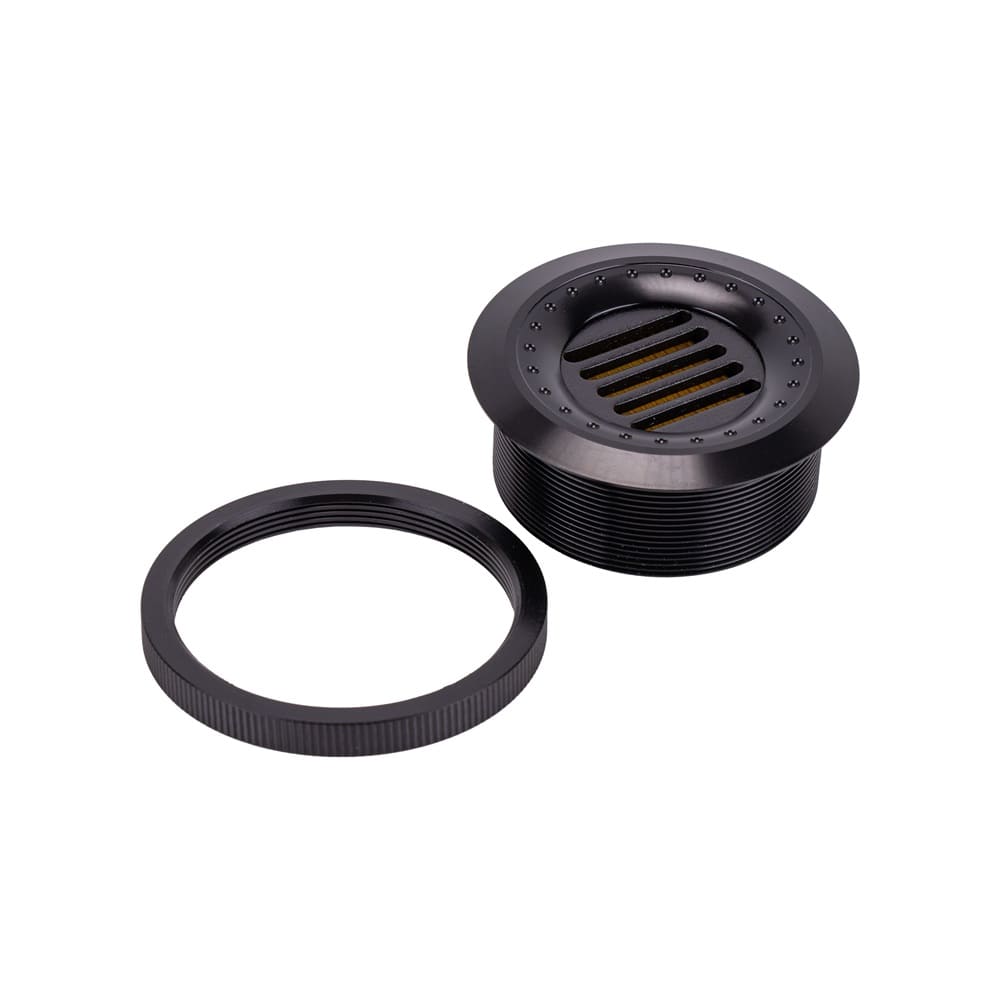

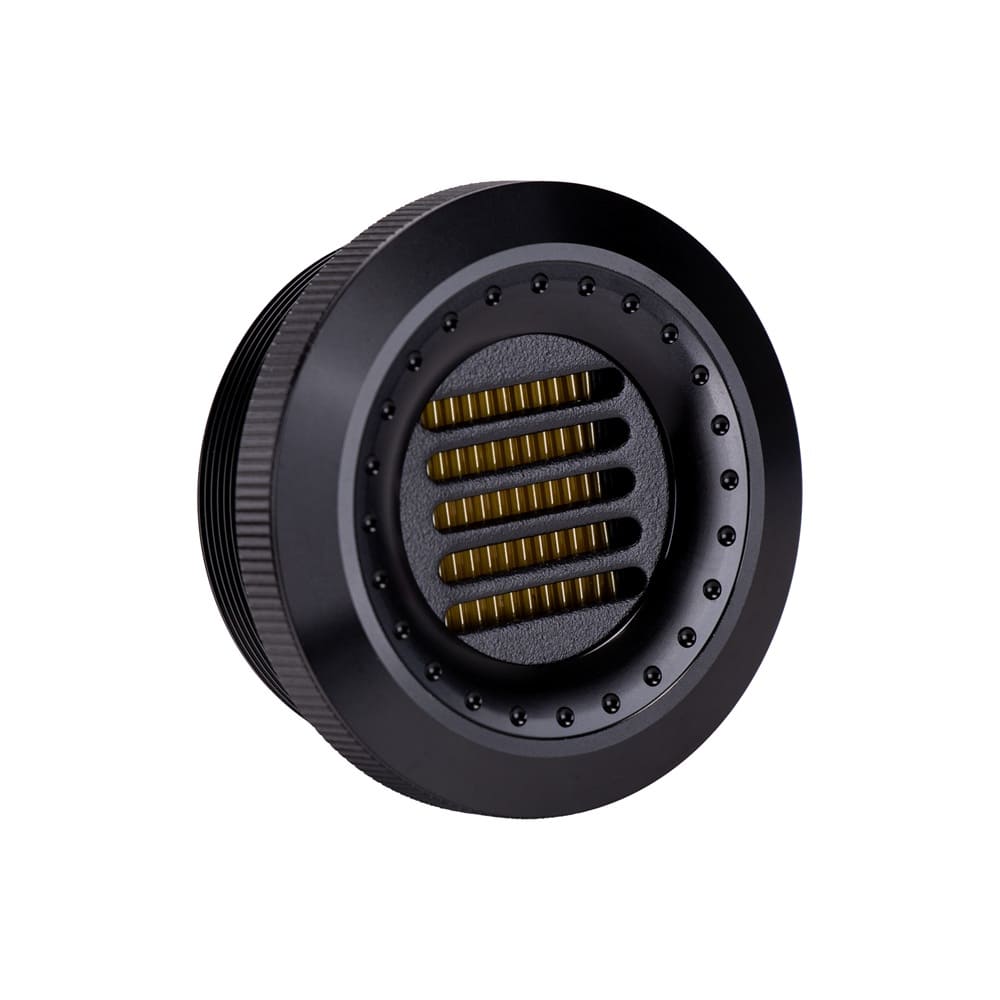

ZQ1 AMT tweeter (2")

• Speaker type: AMT tweeter

• Speaker size: 2 inch (50 mm)

• Frequency response: 4,500 Hz - 40 kHz

• Power handling (RMS): 30 W

• Power handling (MAX): 60 W

• Impedance: 4 Ohm

• Sensitivity: 90.0 dB



Materials & construction:

• Diaphragm: Aluminum

• Magnet: Neodymium


Dimensions:

• Mounting depth: 19 mm

• Mounting diameter: 44 mm

• Outer diameter: 53 mm



Important parameters:

• Re: 3.2 Ohm

• Fs: 3,500 Hz
