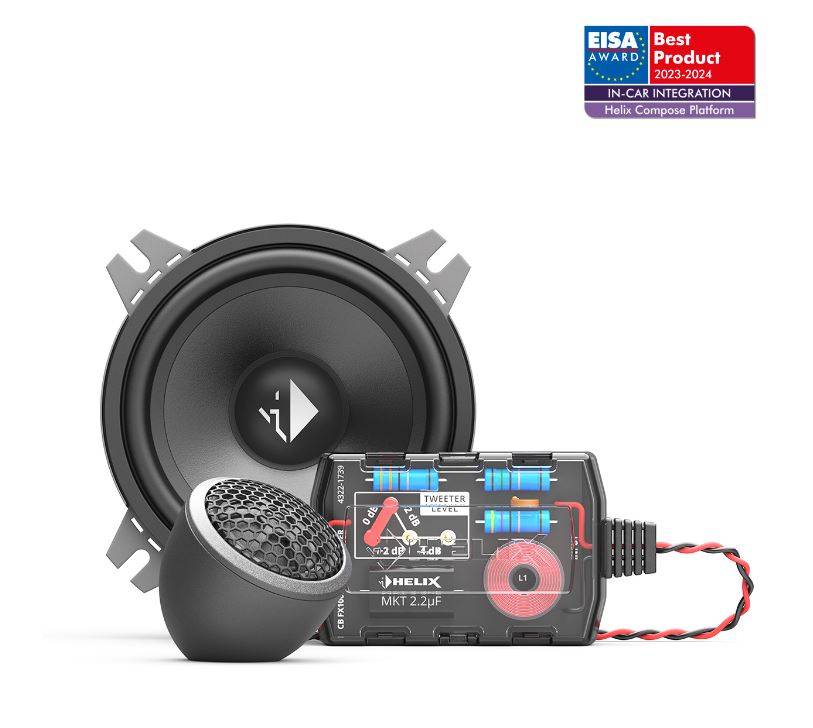

HELIX CB K100.2-S3

HELIX CB CB K100.2-S3

HELIX COMPOSE. The perfect speaker for every composition.
Born out of the increasingly demanding challenges of modern vehicle technology and the HELIX-typical quest for intelligent solutions, we made the progressive redesign of proven universal speaker systems our mission. The result: the innovative HELIX COMPOSE platform, which combines classic universal loudspeakers with the advantages of vehicle-specific systems according to the guiding principle "developed in the car, for the car". Innovative materials and the latest technologies paired with smart, practical engineering - the best of both worlds in harmony: very high efficiency, fantastic sound quality and enormous dynamics that fit into any vehicle. HELIX COMPOSE - universal loudspeakers taken to the next level.

All the essentials for an exceptional sound experience
As the name suggests, our BASIC speaker kits offer all the essentials for an exceptional sound experience in the car and therefore the perfect basis for entering the world of HELIX COMPOSE. All components are ideally matched to each other and also form the perfect team with our HELIX and MATCH amplifiers, guaranteeing maximum performance and power output at all times. In addition, our new mechanical technologies have been implemented in our BASIC tweeter with a clear focus on safety during connection and operation, making integration into the vehicle considerably easier.

Maximum efficiency
HELIX COMPOSE stands for smart engineering and is therefore based on the highly efficient 3 Ohm technology, which harmonizes perfectly with all HELIX and MATCH amplifiers and at the same time enables a clearly noticeable increase in efficiency and maximum sound pressure. Some models will also be available as an optional 2 Ohm version, which, in conjunction with the appropriate amplifiers, will get the absolute maximum performance and power out of the respective loudspeaker component.

Powerful bass - with pinpoint accuracy
In the BASIC series, our COMPOSE bass/midrange driver combines high efficiency with excellent sound quality. The lightweight yet stable polypropylene cone ensures exceptional sound performance, while the torsion-resistant basket is equipped with additional ventilation openings for optimized cooling. A powerful magnet system is installed for ideal impulse response, while the soft polyurethane dust cap guarantees an optimized frequency response in the upper mid-range. Last but not least, the compact design is ideal for integration in confined spaces.

Tweeter with unique dynamics
When entering the HELIX COMPOSE world of sound, precise treble is of course a must for an all-round successful music experience. Our BASIC tweeter therefore has a coated silk dome tweeter and a highly efficient neodymium magnet - the result: unique dynamics in the high frequency reproduction and crystal clear sound.

Optimally separated
The crossover is equipped with a 4-stage tweeter level adjustment with 12 dB slope for optimum adaptation to the installation position and integrated tweeter protection. In addition, the elaborate tuning of the crossover ensures the best possible distribution of the frequency band and a harmonious sound image. Thanks to its compact format, the crossover is perfect for installation in space-saving installations.

FlexMount20 - Universal meets vehicle-specific
FlexMount is a mounting system based on specially developed adapter rings, which allows the COMPOSE FlexMount speakers to be installed in an almost infinite number of vehicles. This turns the universal tweeter into a vehicle-specific tweeter in no time at all, which can be easily and acoustically optimized installed in the original installation position of the vehicle using the matching FlexMount20 ring.

Features

✓ 2-way speaker kit, which combines high efficiency with exceptional sound quality
✓ 3 Ohm technology for maximized power output of the amplifier
✓ Compact design for easy installation even in confined spaces

Tweeter
✓ 20 mm tweeter with silk dome for brilliant and clear high-frequency reproduction
✓ Highly efficient neodymium magnet for an optimally linear magnetic flux.magnet for an optimally linear magnetic flux
✓ Compact design and various mounting options for a wide range of installation requirements
✓ Housing for recessed and angled installation included
✓ Compatible with the optionally available vehicle-specific FlexMount20 adapter rings, which enable acoustically optimized and professional integration in the original installation positions of the vehicle

Mid-bass driver
✓ 100 mm mid-bass driver with lightweight and at the same time extremely rigid polypropylene cone for extraordinary sound performance
✓ Torsion-resistant steel basket with additional ventilation openings for optimized cooling of the voice coil and maximum power handling
✓ Strong magnet system for optimal impulse response
✓ Polyurethane dome (dustcap) for maximum sound quality.Dome tweeter (Dustcap) to optimize the frequency response in the upper mid-range

Crossover
✓ Separate, high-quality crossover with compact dimensions for easy installation
✓ 4-stage tweeter level adjustment with integrated tweeter protection for optimum adaptation to the installation position
✓ Elaborately tuned - with 12 dB slope for the tweeter

✓ Scope of delivery

2 x CB T20FM-S tweeters
2 x CB W165-S3 bass-midrange drivers
2 x CB FX165.2 crossover
2 x tweeter mounting accessories
1 x mounting material

🗒Instruction manual
☞(Download)
