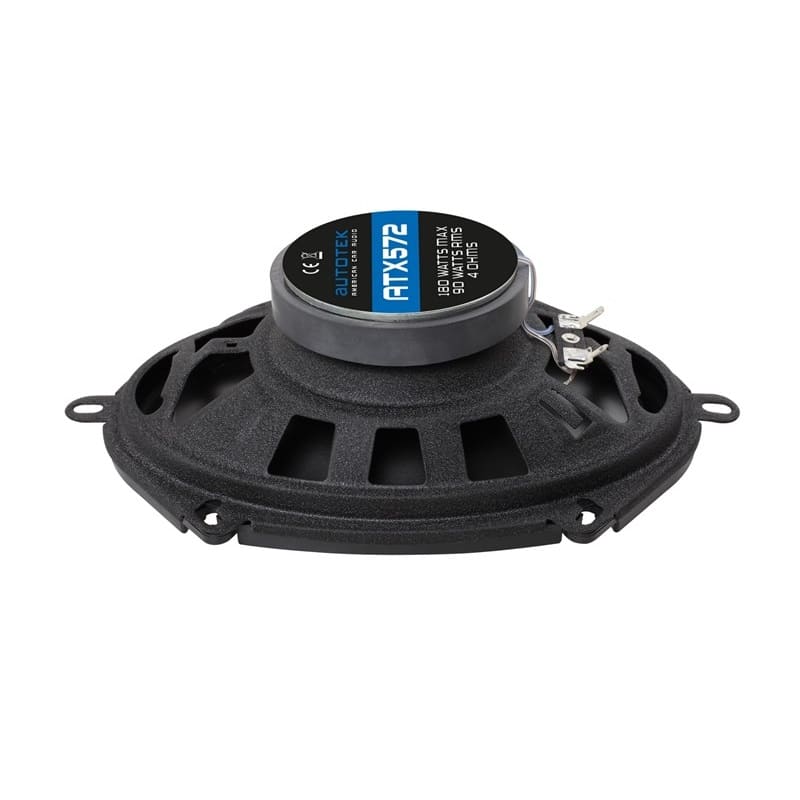

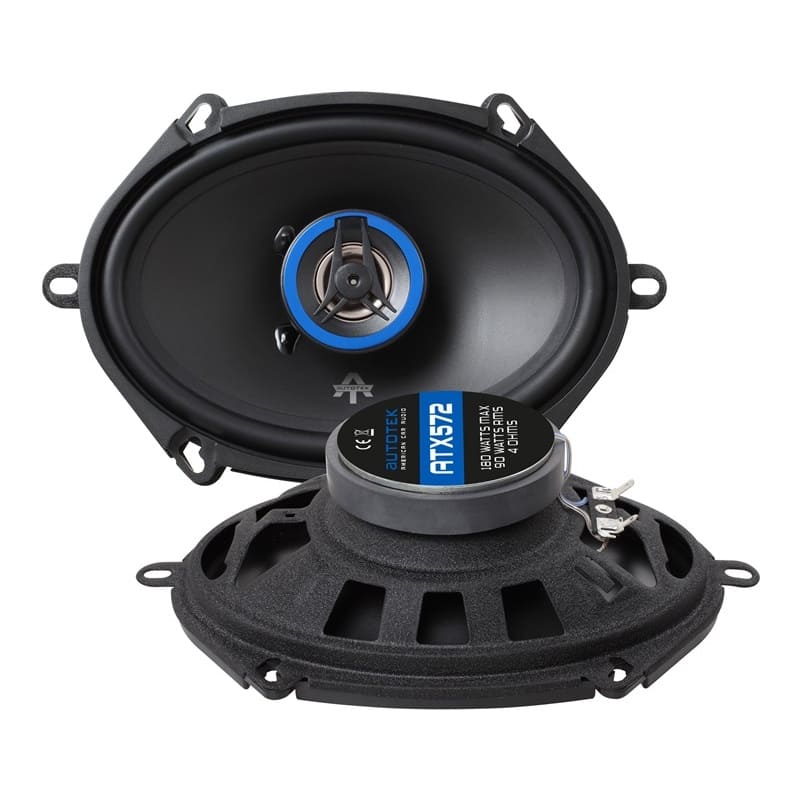

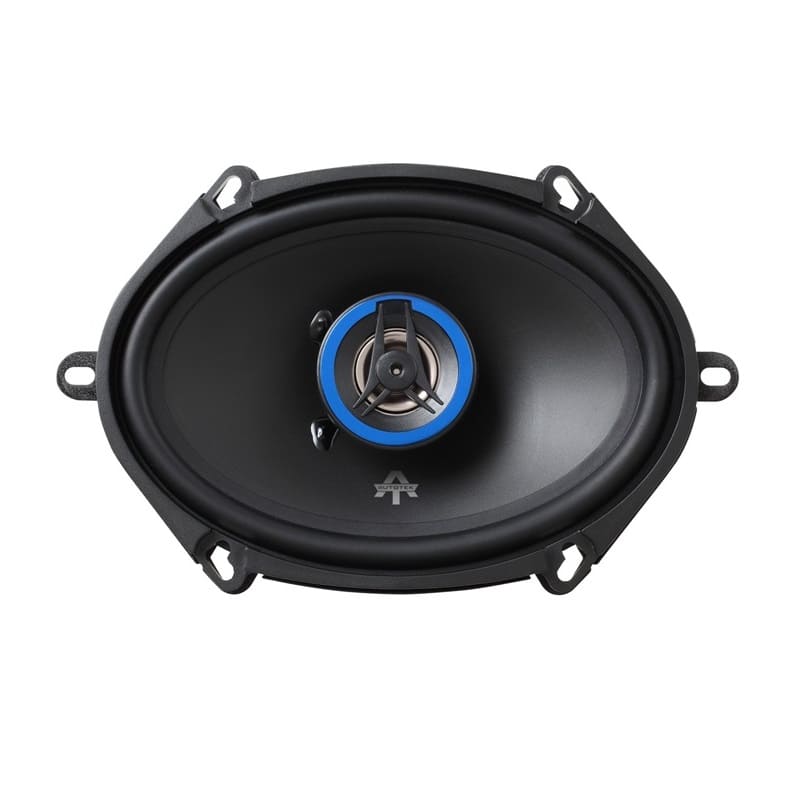

The Autotek ATX572 is an oval 2-way coaxial speaker measuring 13 x 18 cm (5 x 7 inches) and is ideal for replacing existing car speakers in compatible OEM mounting locations. Thanks to its coaxial design, the woofer/midrange driver and tweeter are compactly housed in a single unit.
The polypropylene cone of the low-midrange driver combines light weight with high stability. An integrated 13-mm Mylar tweeter is used for the high-frequency range. With a power handling capacity of 90 watts RMS per pair and a maximum power handling capacity of 180 watts, the ATX572 provides a solid foundation for upgrading stock car audio systems.
With a 4-ohm impedance, the speaker system can be used with both compatible car stereos and external car audio amplifiers. The mounting depth of just 53 mm makes it easy to install even in tight spaces.
Technical Specifications
Speaker type: 2-way coaxial speaker
Dimensions: 13 x 18 cm / 5 x 7 inches
RMS Power Handling: 90 watts
Maximum power handling: 180 watts
Impedance: 4 ohms
Frequency range: 63 Hz – 22,000 Hz
Tweeter: 13 mm Mylar tweeter
Low- and midrange driver: Polypropylene cone
Basket: sturdy steel basket
Installation depth: 53 mm
Cutout dimensions: 128 x 182 mm
Shape: oval
What's Included: 1 pair / 2 speakers
