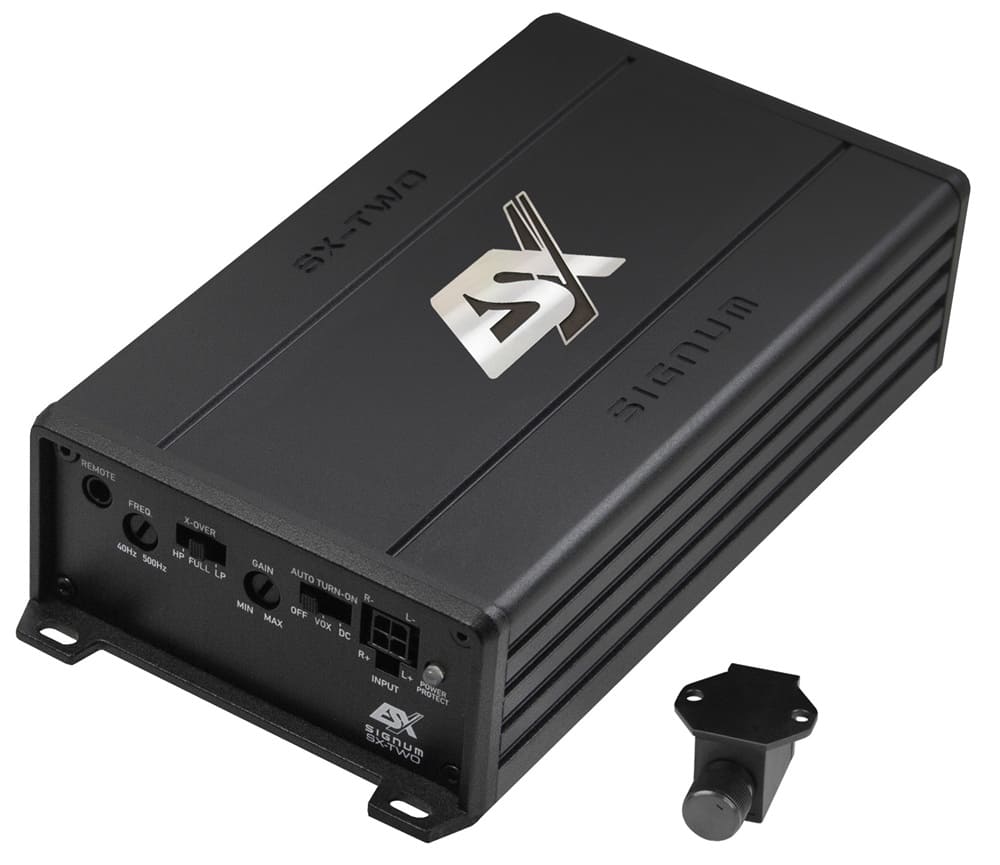

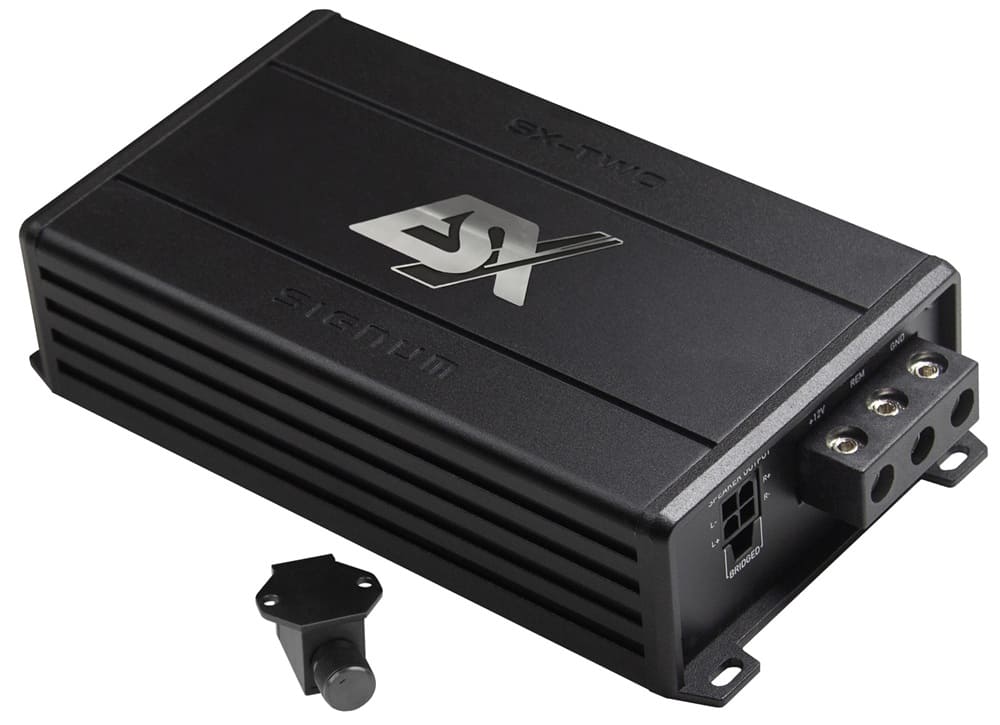

ESX SX-TWO

With the SIGNUM SX Mini series, ESX is expanding its extensive car audio portfolio with four brand new MINI Class D amplifiers that set new standards with their minimal dimensions, outstanding sound and surprisingly high output of up to 600 watts RMS. The compact powerhouses use the latest Class D technology, which, thanks to its high efficiency, enables low heat generation and thus makes the particularly space-saving design with a width of only 83 mm and a height of 38 mm possible in the first place. This makes the mini amplifiers ideal for inconspicuous installations, whether under the seat, in the side panel or in the trunk. A special plus for practicality: the SX-FIVE, SX-TWO and SX-ONE models are supplied with a bass level remote control. This means that the bass can be conveniently adjusted from the driver's seat at any time - perfect for anyone who values flexibility and maximum control in everyday life.

The very compact SX-TWO delivers an impressive total output of 2 x 140 or 250 watts RMS at 4 / 2 ohms with a very low distortion factor of just 0.003%. Whether for powerful front systems or in bridge mode for subwoofers - this mini amplifier offers audiophile sound and powerful performance.

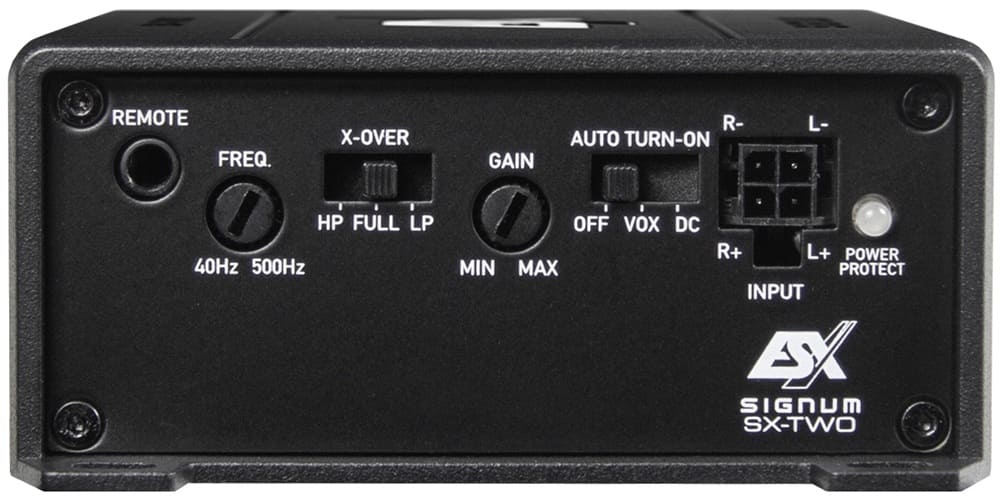

Features

· Efficient Class D amplifier with compact dimensions
· Die-cast aluminum heat sink with optimum cooling properties
· Cinch inputs via cable plug

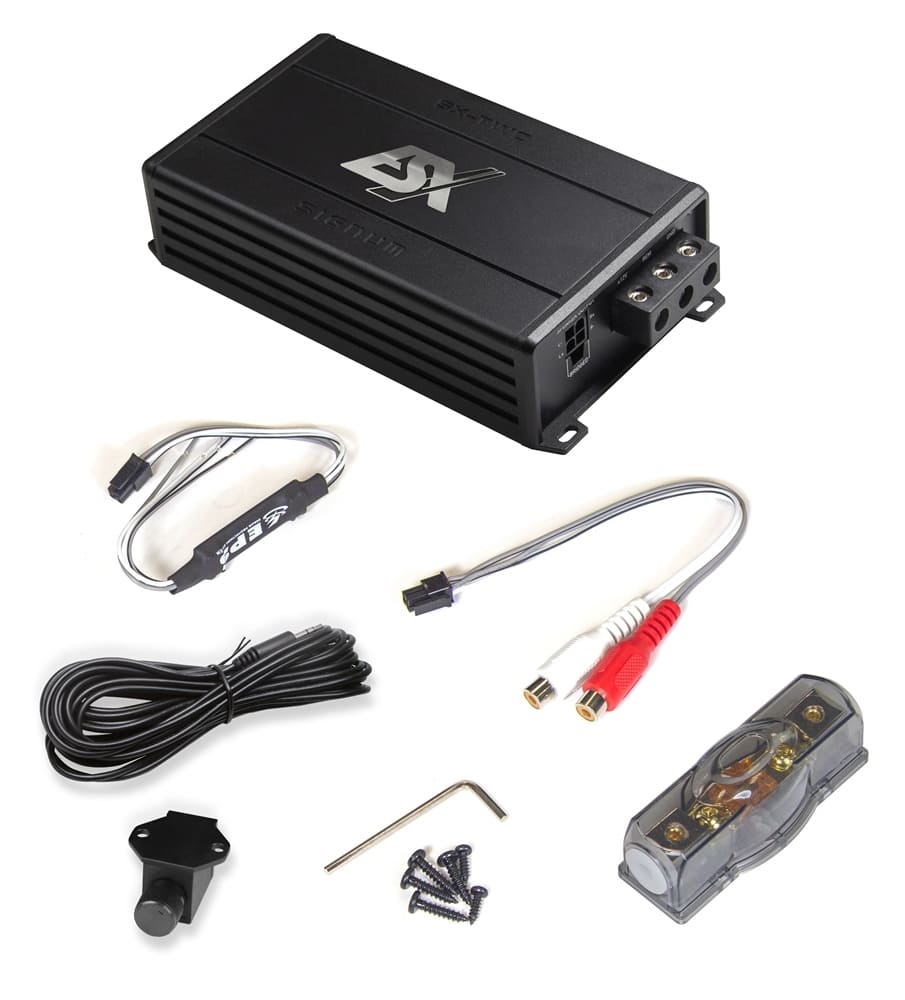

· Compact bass level remote control
· High-level inputs with Error Protection System (EPS®)
· Automatic switch-on function
· Start/stop ready

Technical specifications

2-channel mini Class D digital amplifier

2 x 140/250 watts RMS @ 4/2 Ω

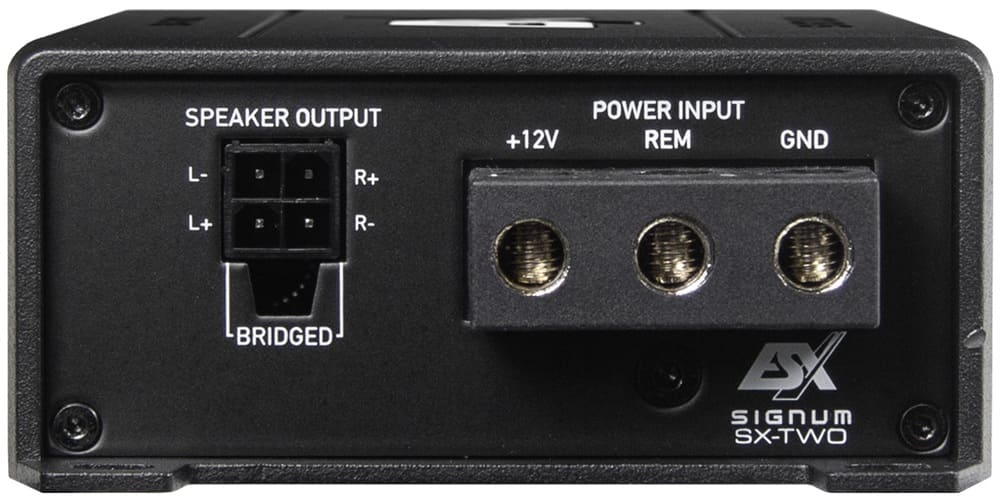

1 x 500 Watt RMS @ 4 Ω bridged

HPF/LPF 50 - 500 Hz

Dimensions 83 x 38 x 153 mm

Low THD design: distortion factor 0.003%

Efficiency up to 88%
