GZNW 38SPL-D1/D2

849,00€

Tax included Shipping calculated at checkout.

Subwoofer

Barcode: 4037072022186

Packaging Unit

impedance

Product variants

Free shipping from 49€

Shipping

✓ Free shipping from 49€ within Germany and from 99€ to the EU.

✓ Delivery times vary depending on the product and can be found on the product page, usually 1 - 3 working days for stock items, international shipping times vary, usually 6 - 10 working days.

✓ In most cases, shipping is carried out by DHL, UPS and GLS.

✓ Depending on the product and location, items can also be shipped with other providers.

✓ Tracking will be sent by email after the shipment has been processed.

Normal shipping route

✓ 1 - 40Kg = DHL, UPS and GLS

✓ 40.1 - maximum kg = forwarding agency

✓ Bulky goods = freight forwarder

✓ Customs shipments = DHL, GLS or freight forwarder

Parcel collection

✓ Collection takes place regularly from Monday to Friday, orders received by 3 p.m. are usually disposed of on the same day for goods in stock and transported directly to the parcel center.

5% discount for prepayment

Receive a 5% pre-payment discount. The discount is automatically deducted in the shopping cart/checkout and is valid for all products. Vouchers or discount codes may be excluded or already combined.

Wiring wizard & port computer

Use our wiring wizard for simple wiring of speakers and subwoofers! The correct connection is important for your amplifier! Low-impedance operation can damage the amplifier! The data sheet shows you which connection the respective amplifier is designed for!

Our port calculator shows you which tuning your enclosure has! The net volume is always particularly important here; calculate the pure chamber of the subwoofer beforehand to arrive at the correct result. The net volume is calculated minus all displacements and is important when designing the enclosure.

Downloads

Bedienungsanleitung

Subscribe to the newsletter and save 20€ directly

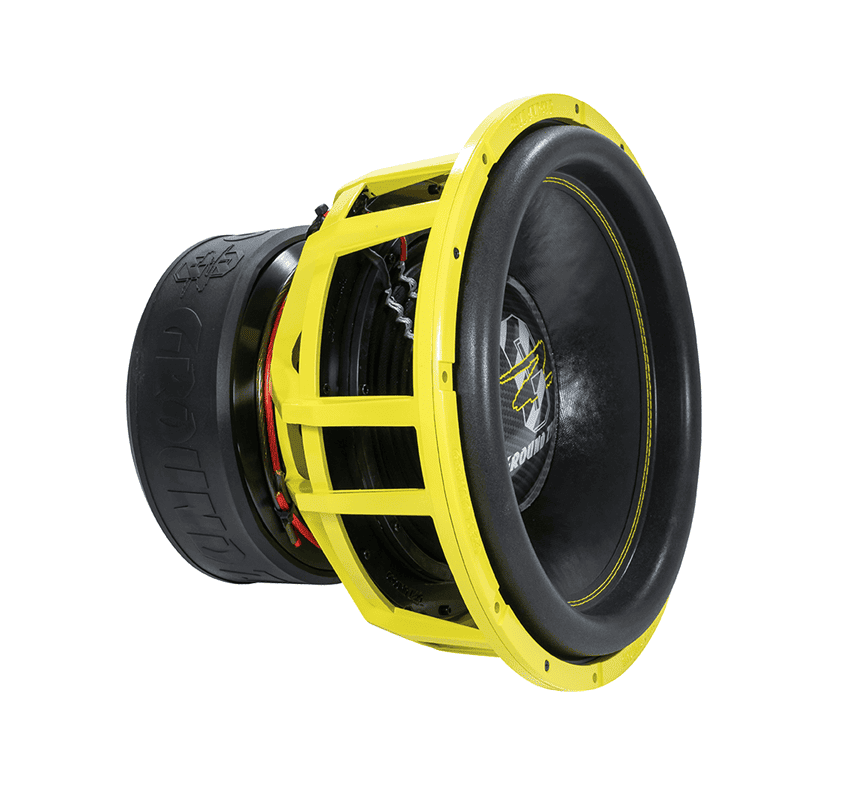

The Ground Zero GZNW 38SPL-D1 / GZNW 38SPL-D2 from the NUCLEAR series is a 38-cm SPL subwoofer designed without compromise for high power handling and enormous sound pressure. With a power handling capacity of 3,500 watts RMS and up to 7,000 watts SPL, the 15-inch woofer is ideal for high-performance car audio systems as well as demanding SPL applications.

A solid cast aluminum basket provides the necessary mechanical stability. The fiber-reinforced paper cone combines high rigidity with the dynamic characteristics required for performance-oriented subwoofers. A 75-mm voice coil with 4-layer CCA flat wire and the 4-layer Nomex suspension are designed for high power handling and large cone excursions.

With a maximum excursion of 80 mm, the GZNW 38SPL offers enormous headroom for powerful bass reproduction. The Klippel®-optimized design ensures controlled behavior of the drive system even at high volume levels. The robust construction is rounded out by a dust cap in a carbon-fiber design.

The GZNW 38SPL is available in two impedance variants: The GZNW 38SPL-D1 features a 2 × 1-ohm dual voice coil, while the GZNW 38SPL-D2 is equipped with a 2 × 2-ohm voice coil. This allows you to select the subwoofer that best matches your existing power amplifier and desired wiring configuration

Product Features

High-Performance SPL Subwoofers from the Ground Zero NUCLEAR Series
Nominal diameter: 38 cm / 15 inches
Designed for high-performance car audio and SPL applications
Klippel®-Optimized Speaker Design
Fiber-reinforced paper membrane
Solid Cast Aluminum Basket
75-mm / 3-inch voice coil
4-layer CCA flat-wire voice coil
4-layer Nomex centering ring
Dust cap in carbon fiber design
High mechanical strength
Maximum deflection (Xmax): 80 mm
Power Handling: 3,500 watts RMS
SPL power handling: 7,000 watts
Recommended amplifier power: 2,000–7,000 watts
Available in D1 and D2 versions

Technical Specifications for the GZNW 38SPL-D1

Model: Ground Zero GZNW 38SPL-D1
Series: NUCLEAR
Model: High-Performance SPL Subwoofer
Nominal diameter: 38 cm / 15 inches
RMS Power Handling: 3,500 watts
SPL Power Handling: 7,000 watts
Recommended amplifier power: 2,000–7,000 watts
Impedance: 2 × 1 ohm
Efficiency: 88.5 dB
Voice coil diameter: 75 mm / 3 inches
Voice coil: CCA, 4-layer flat wire
Diaphragm: fiber-reinforced paper
Centering: 4-ply Nomex
Basket: Cast aluminum basket
Maximum deflection (Xmax): 80 mm
Installation diameter: 358 mm
Installation depth: 269 mm
Resonance frequency (Fs): 36.0 Hz
Total Quality (Qts): 0.52
Equivalent air volume (Vas): 54 liters

Technical Specifications for the GZNW 38SPL-D2

Model: Ground Zero GZNW 38SPL-D2
Series: NUCLEAR
Model: High-Performance SPL Subwoofer
Nominal diameter: 38 cm / 15 inches
RMS Power Handling: 3,500 watts
SPL Power Handling: 7,000 watts
Recommended amplifier power: 2,000–7,000 watts
Impedance: 2 × 2 ohms
Efficiency: 88.2 dB
Voice coil diameter: 75 mm / 3 inches
Voice coil: CCA, 4-layer flat wire
Diaphragm: fiber-reinforced paper
Centering: 4-ply Nomex
Basket: Cast aluminum basket
Maximum deflection (Xmax): 80 mm
Installation diameter: 358 mm
Installation depth: 269 mm
Resonance frequency (Fs): 36.5 Hz
Overall Quality (Qts): 0.61
Equivalent air volume (Vas): 63.3 liters

Difference between D1 and D2

GZNW 38SPL-D1: Dual voice coil with 2 × 1 ohm
GZNW 38SPL-D2: Dual voice coil with 2 × 2 ohms
Efficiency D1: 88.5 dB
Efficiency D2: 88.2 dB
Resonance frequency D1: 36.0 Hz
Resonance frequency D2: 36.5 Hz
Qts D1: 0.52
Qts D2: 0.61
Vas D1: 54 liters
Vas D2: 63.3 liters

What's Included:

1 × Ground Zero GZNW 38SPL-D1 or GZNW 38SPL-D2 subwoofer, depending on the selected model
