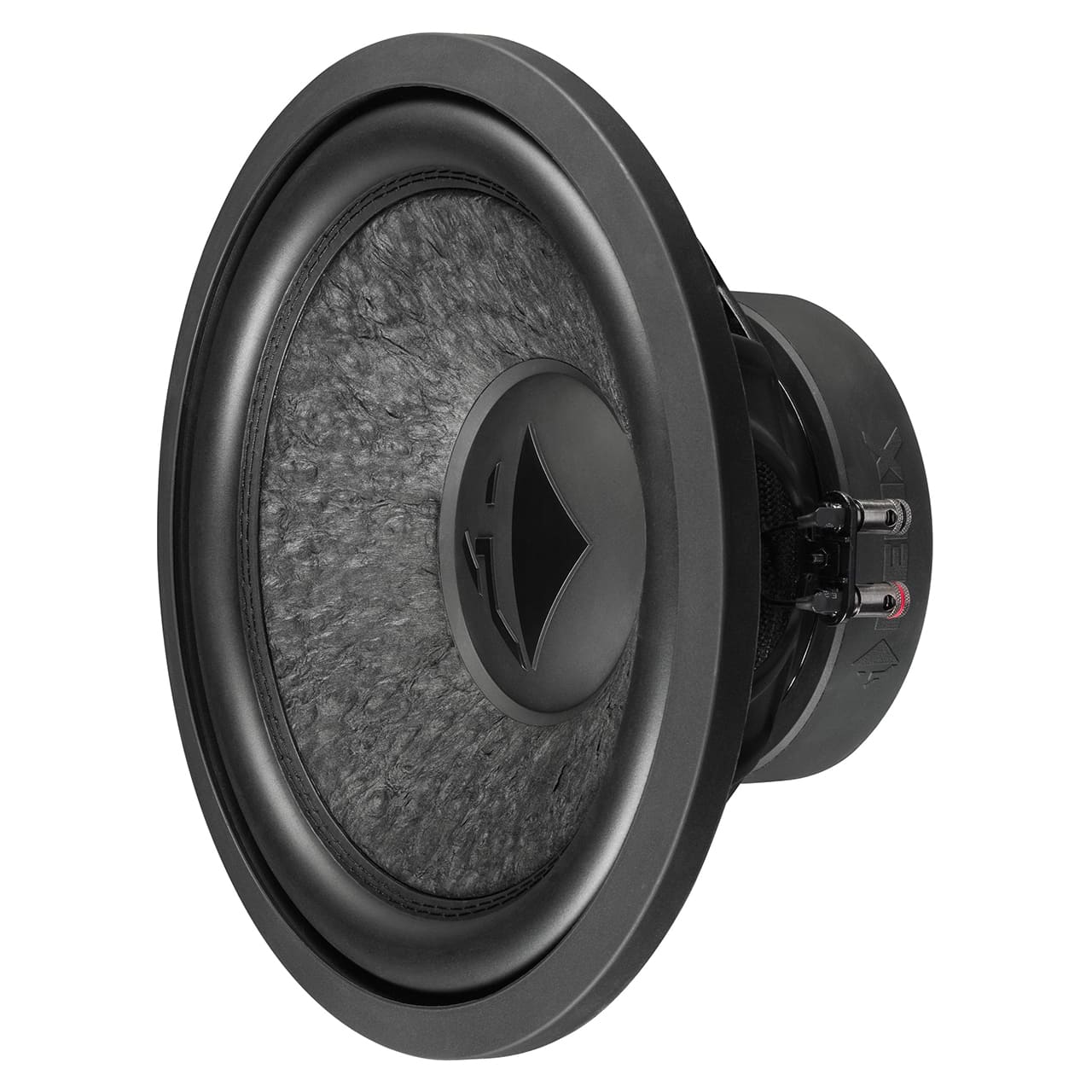

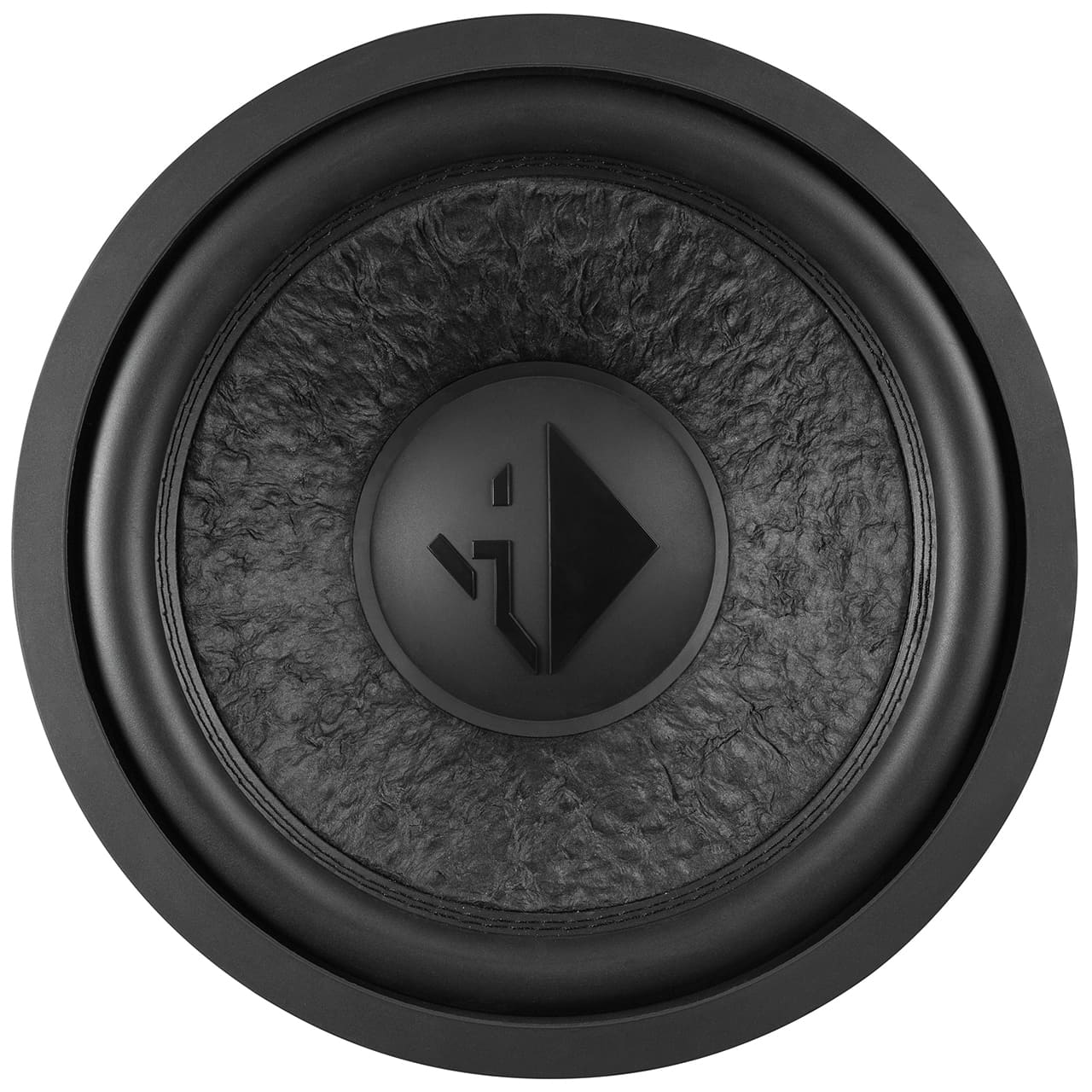

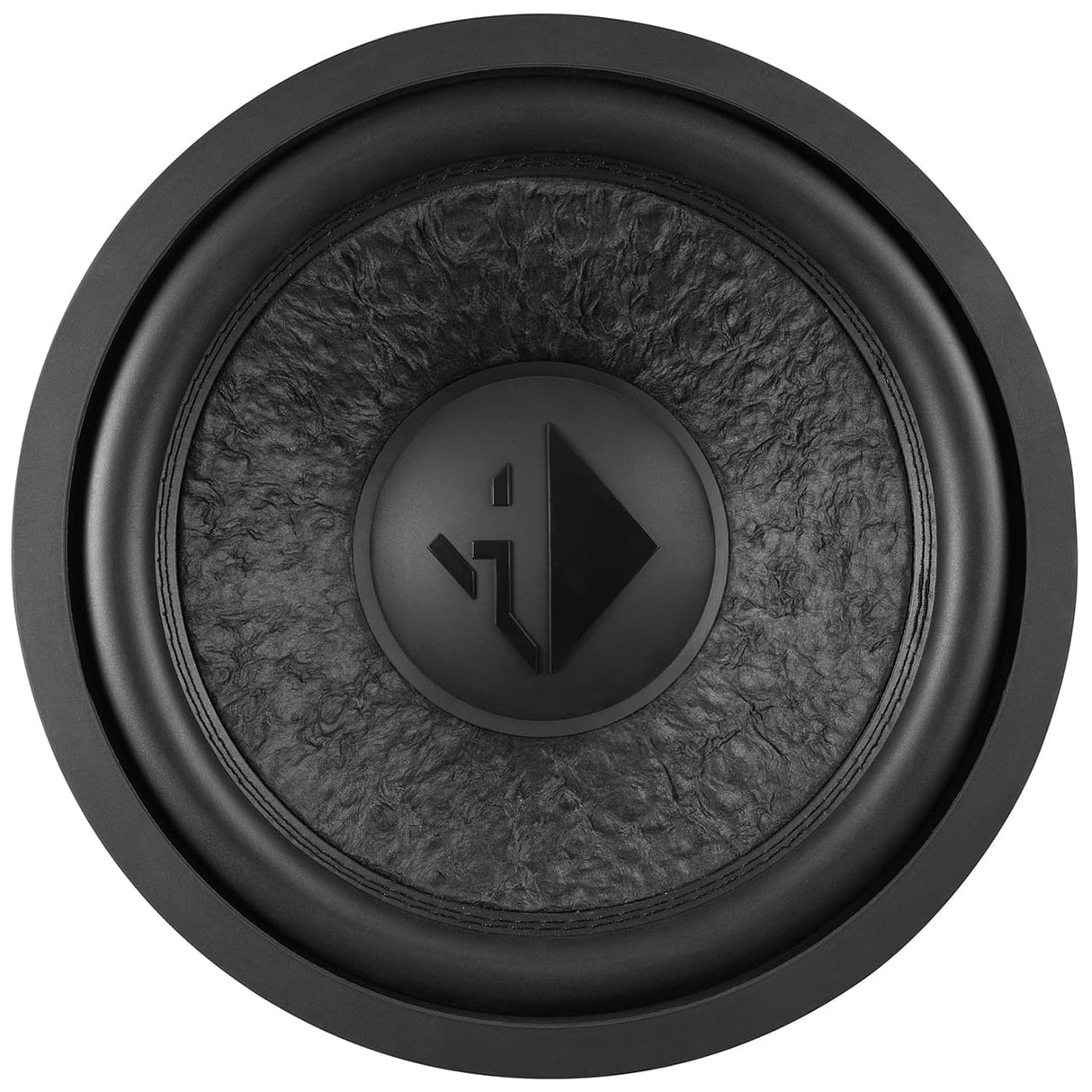

HELIX IK W12
Regular price
219,00€
Unit price
/
Unavailable
Superior bass performance from compact dimensions
With the new KW individual chassis, the IMPACT subwoofer line offers powerful bass suppliers for use in very compact enclosures. Especially when it comes to making optimum use of the available space in the vehicle with an individual subwoofer enclosure shape, these woofers open up completely new possibilities without having to make any acoustic compromises.
Clever down to the last detail
The extremely hard cone made of handmade paper fibers in combination with the heavy-duty drive system not only converts amplifier power into powerful sound pressure casually and without compression effects, but also scores sonically with subtle beats.
Flexible connection - 2 x 2 or 1 x 2 ohms
The drivers are available as either 1 x 2 Ohm (SVC2) or 2 x 2 Ohm (DVC2) versions. This means that there is always a suitable woofer for every conceivable amplifier configuration - whether monoblock, two-channel power amplifier or even multi-channel amplifier - to get the maximum performance out of it.
"All inclusive" self-made enthusiasts
A solid protective grille and a cover ring are of course included in the scope of delivery. For optimum bass performance in DIY installations, our technical data sheet contains recommendations for closed and bass reflex enclosures with all parameters such as net volume, tunnel tuning frequency and DSP settings.
Features:
- 2 x 2 Ohm dual voice coil for flexible system configurations
- Extremely torsion-resistant, hand-scooped paper cone for exceptional impulse fidelity
- Double venting of the voice coil for minimal compression effects and high power handling
- Long-stroke rubber surround for maximum mechanical resilience
- Solid pressure terminals
- Powerful magnet system optimized for compact enclosures

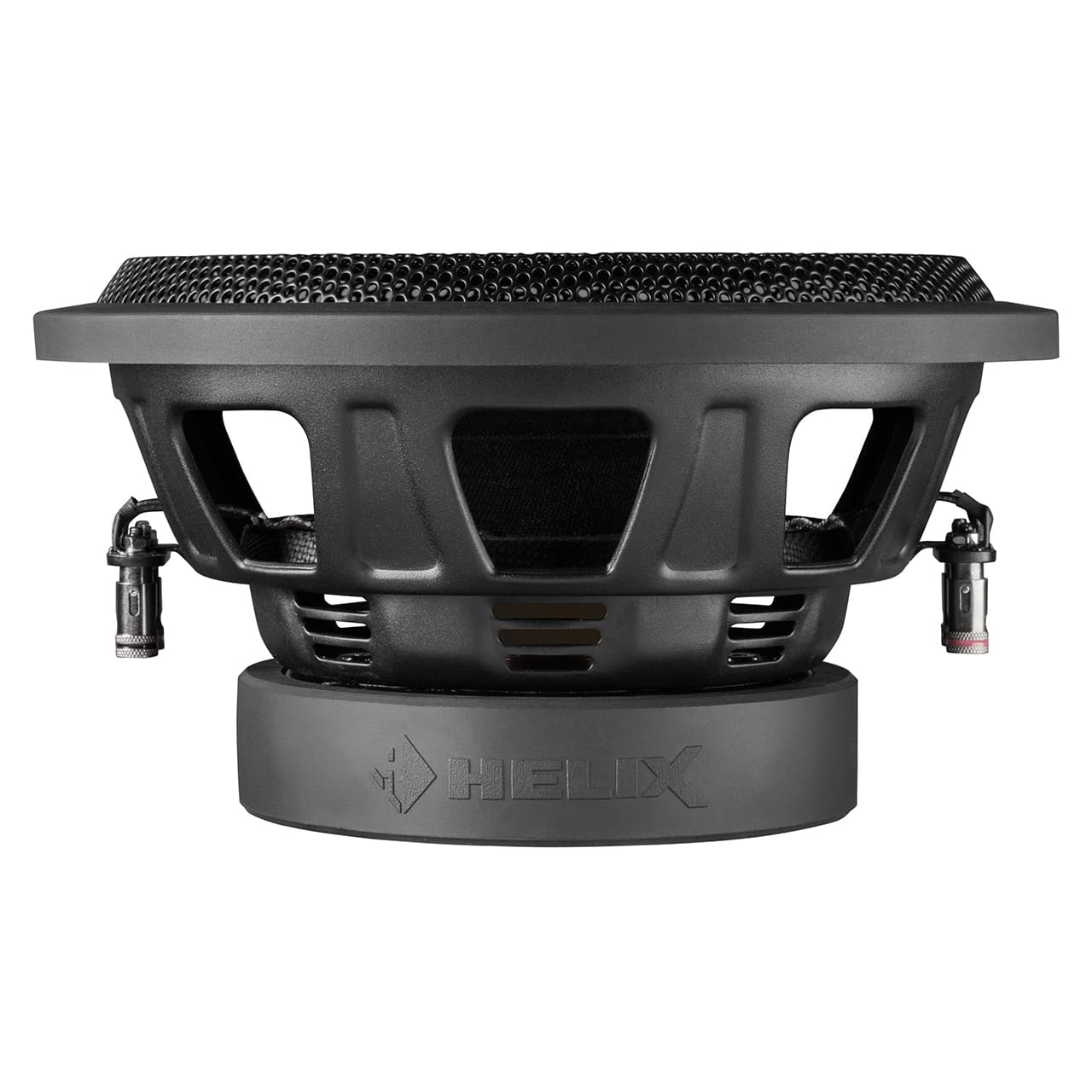

- Robust magnet cover with HELIX lettering to protect the magnet

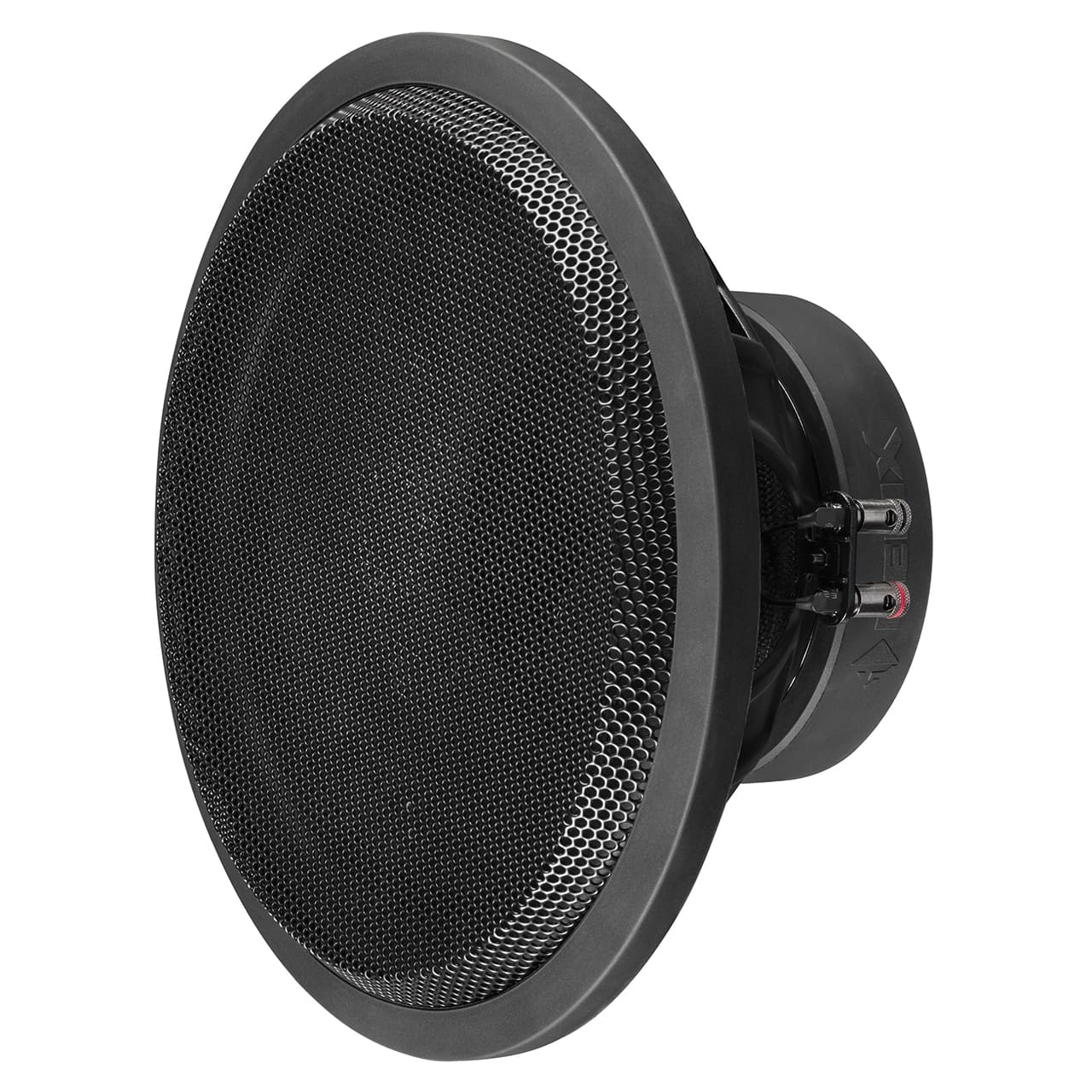

- Grille and cover ring included in the scope of delivery
Technical data:
| IK W12-DVC2 - 2 x 2 Ohm | ||
| Power handling RMS / Max. | P | 300 / 600 watts |
| Impedance | Z | 2 x 2 Ω |
| Direct current resistance | Re | 2 x 1.6 Ω |
| Resonant frequency | Fs | 32 Hz |
| Mechanical quality | Qms | 3,70 |
| Electrical quality | Qes | 0,46 |
| Total quality | Qts | 0,41 |
| Compliance | Cms | 179 μm/N |
| Equivalent volume | Vas | 66 L |
| Force factor | B*I | 13.7 Tm |
| Efficiency | SPL |
93.0 dB @ 2.83V / 1m |
| Diaphragm area | Sd | 515 cm² |
| Moving mass | Mms | 134 g |
| Diaphragm material | Handmade paper membrane |
|
| Mechanical Resistance |
Rms | 7.33 kg/s |
| Voice coil diameter |
ø | 50.8 mm |
| Voice coil winding width |
24 mm | |
| Max. linear diaphragm stroke |
Xmax | +/- 8.0 mm |
| Outer diameter | ø | 316 mm |
| Installation diameter | ø | 286 mm |
| Installation depth | 144 mm | |
| Recommended enclosure volumes | ||
| Closed housing | ||
| Net volume | 22 L | |
| Lower cut-off frequency (-3dB) | 40 Hz | |
| Recommended DSP settings |
"Self-Define" high-pass: 37 Hz / Q = 1.6; EQ filter: 90 Hz / Q = 1.5 / -3 dB |
|
| Bass reflex enclosure | ||
| Net volume | 30 L | |
| Reflex channel diameter | ø | 100 mm |
| Reflex duct area | 78 cm² | |
| Reflex duct length | 28 cm | |
|
Tunnel tuning frequency |
Fb | 39 Hz |
|
Lower cut-off frequency (-3dB) |
39 Hz | |
|
Recommended DSP settings |
"Self-Define" high-pass: 36 Hz / Q = 1.3; EQ filter: 100 Hz / Q = 0.85 / -2 dB |
|
Scope of delivery
1 x HELIX IK W12 subwoofer
1 x protective grille
1 x cover ring
1 x data sheet
