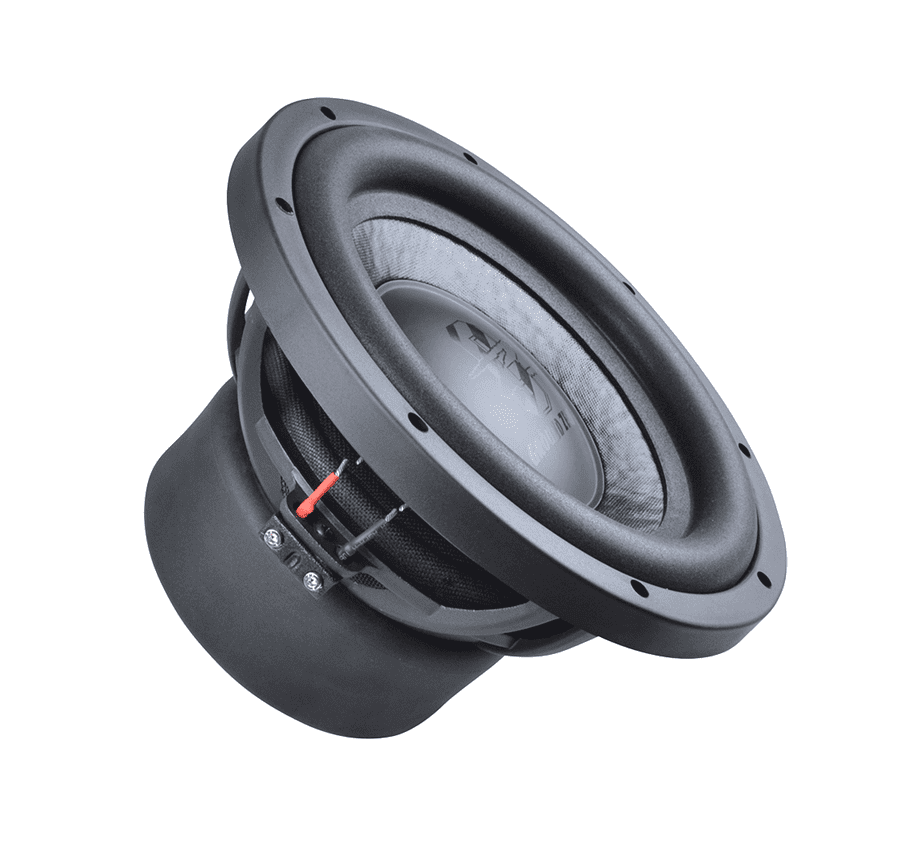

GZUW 10SQ-D2

The Ground Zero GZUW 10SQ-D2 from the URANIUM series is a high-quality 25-cm subwoofer designed specifically for precise and controlled bass reproduction. This makes it particularly well-suited for car audio systems that require not only a powerful low-frequency foundation but also sound quality and clean impulse response.

The formed and pressed paper cone combines a comparatively low weight with the mechanical properties required for a subwoofer. A U-shaped foam surround allows for the necessary cone movement. The audiophile Polycot centering system ensures stable guidance. The solid cast aluminum basket provides a torsionally rigid base for the entire drive system.

At the heart of the GZUW 10SQ-D2 is a 50-mm copper voice coil. With a 450-watt RMS power handling capacity and a recommended amplifier power of 300 to 600 watts RMS, the woofer offers ample headroom for high-end sound quality systems. The 2 x 2-ohm dual voice coils also provide flexible connection options. The two voice coils can be connected to achieve a total impedance of 1 or 4 ohms, depending on the system configuration.

With a maximum linear excursion of 20 mm (Xmax), a resonance frequency of 40.2 Hz, and carefully tuned Thiele-Small parameters, the GZUW 10SQ-D2 provides a solid foundation for custom-designed subwoofer enclosures

Product Features

• 25 cm / 10-inch Sound-Quality Subwoofer
• Model: Ground Zero GZUW 10SQ-D2
• Series: URANIUM
• Designed for sound-oriented car audio applications
• Klippel®-Optimized Design
• Hand-formed and pressed paper membrane
• U-shaped foam bead
• Solid Cast Aluminum Basket
• 50 mm copper voice coil
• Dual voice coil with 2 x 2 ohms
• Audiophile Polycot Centering
• Dust cap made of coated paper
• Flexible connection to 1 or 4 ohms is possible



Technical Specifications

• Model: High-Quality Sound Subwoofer
• Nominal diameter: 25 cm / 10 inches
• Power Handling: 450 watts RMS
• Recommended amplifier power: 300–600 watts RMS
• Impedance: 2 x 2 ohms
• DC resistance Re (series connection): 4.01 ohms
• Sensitivity (SPL 1 W / 1 m): 86 dB
• Voice coil diameter: 50 mm / 2 inches
• Voice coil material: Copper
• Diaphragm: handmade and pressed paper
• Bead: U-shaped foam bead
• Centering: Polycot
• Maximum deflection Xmax: 20 mm
• Resonance frequency Fs: 40.2 Hz
• Overall quality (Qts): 0.54
• Electrical quality Qes: 0.56
• Mechanical Grade Qms: 13.60
• Equivalent air volume (Vas): 21.8 liters
• Voice coil inductance Le: 1.95 mH
• Mass in motion (Mms): 122.2 g
• BL Power Factor: 14.83
• Outer diameter: 262 mm
• Installation diameter: 236 mm
• Installation depth: 148 mm



What's Included

• 1 x Ground Zero GZUW 10SQ-D2 Subwoofer
