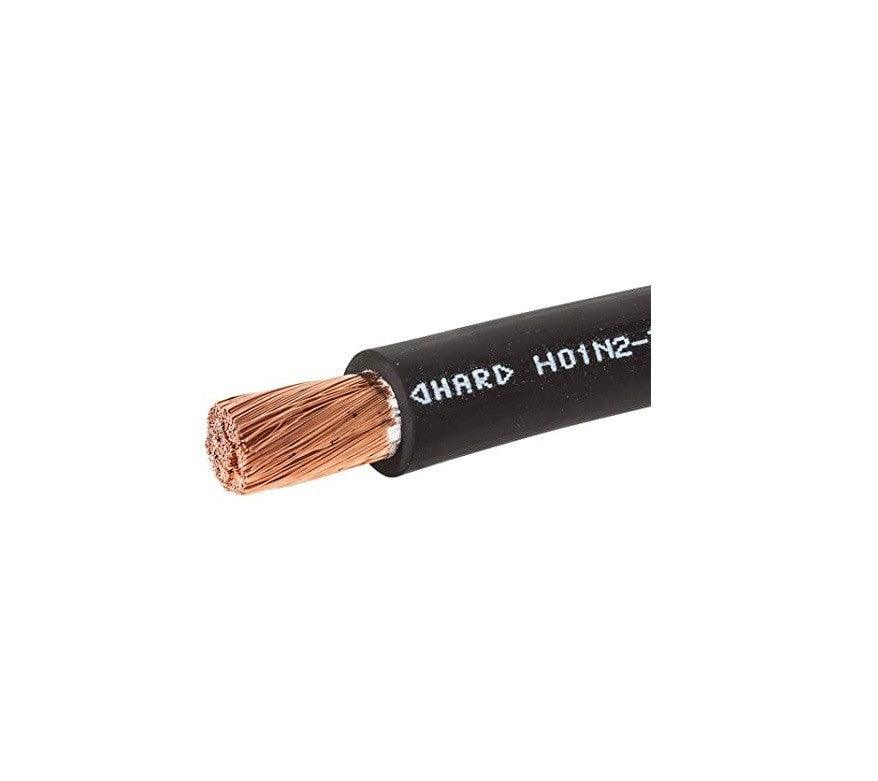

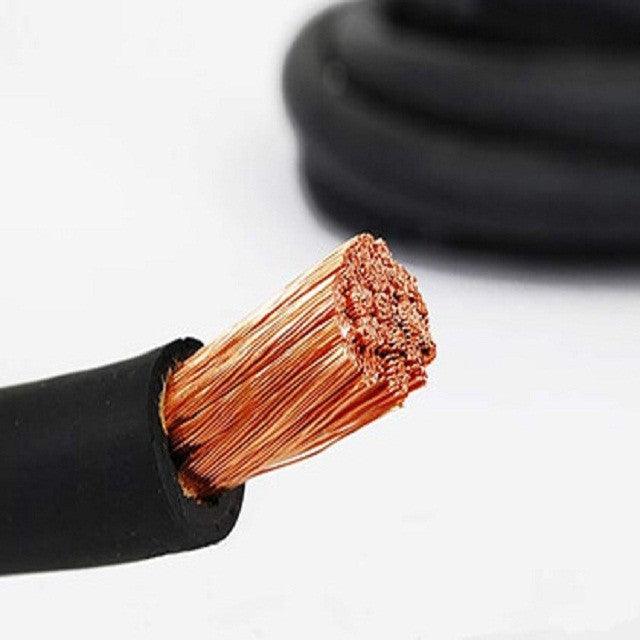

H01N2-D 25mm² welding cable

Welding cable H01N2-D

What does the designation H01N2-D mean?
In order to find the right cable for the respective application in terms of influences and specifications, the product designations consist of letters and numbers. The letters indicate the properties and materials used in the cable, the numbers indicate the number of cores and their thickness. The core cable H01N2-D can be translated as follows:

H – harmonized cable designation, the typing is valid throughout Europe according to the (HAR) standard DIN VDE0281/0282/0292
01 - designates the nominal voltage, here the approval for 100V voltage between the outer conductor and the earth potential (PE) and 100V voltage between the outer conductors
N2 - Sheath- Inner Sheath Material: Chloroprene based rubber
D – ladder type; fine-wire conductor for welding cables

Normative arc welding cable H01N2-D and the scope:
Reliable wiring with Lapp's H01N2-D welding cable ensures installation on machine tools and welding systems as well as spot welders. The cable is also used in vehicle construction and shipbuilding due to its excellent product properties with regard to the harsh environment. It is particularly suitable for outdoor use. The welding cable also offers a secure connection when used in complex transfer lines such as assembly lines and transport systems. The different conductor cross-sections offered in the online shop enable selection for implementation in a wide variety of applications and areas of application.



Application
✓ For the transmission of high currents from the electric welding device to the welding tool
✓ For use on hand-held electrode holders up to 100 V
✓ Use of the welding cable only in compliance with EN 50565-2
✓ Use in dry or damp rooms

Construction
✓ Bare copper strands according to HAR standard
✓ Wire construction corresponds to approximately class 6 up to 95 mm² and approximately class 5 from 120 mm² according to VDE 0295
✓ Separation layer made of plastic film or paper
✓ Outer jacket made of rubber compound type EM5

Standard references / approvals
✓ H01N2-D type certification according to EN 50525-2-81

specification
✓ Flame retardant according to IEC 60332-1-2



Technical specifications:

✓ Conductor cross-section: 70 mm²

✓ Flammwidrig: according to EN 60332-1-2

✓ Nominal voltage U: 100 V

✓ Sheath Color: black

✓ Ladder Class: Kl.D = normal flexibility

✓ Permitted Cable outside temperature, in motion: -25 °C

✓ Permitted Outside cable temperature, permanently installed: -40 °C

✓ Nominal voltage U0: 100 V

✓ Outer diameter approx.: 19,2 mm

Scope of delivery:
1 piece corresponds to 1 running meter
5 pieces corresponds to 5 running meters

A notice:
✓ No approval in the StVo
