B-Ware ESX QM66SP - 6 channel

B-goods Description:

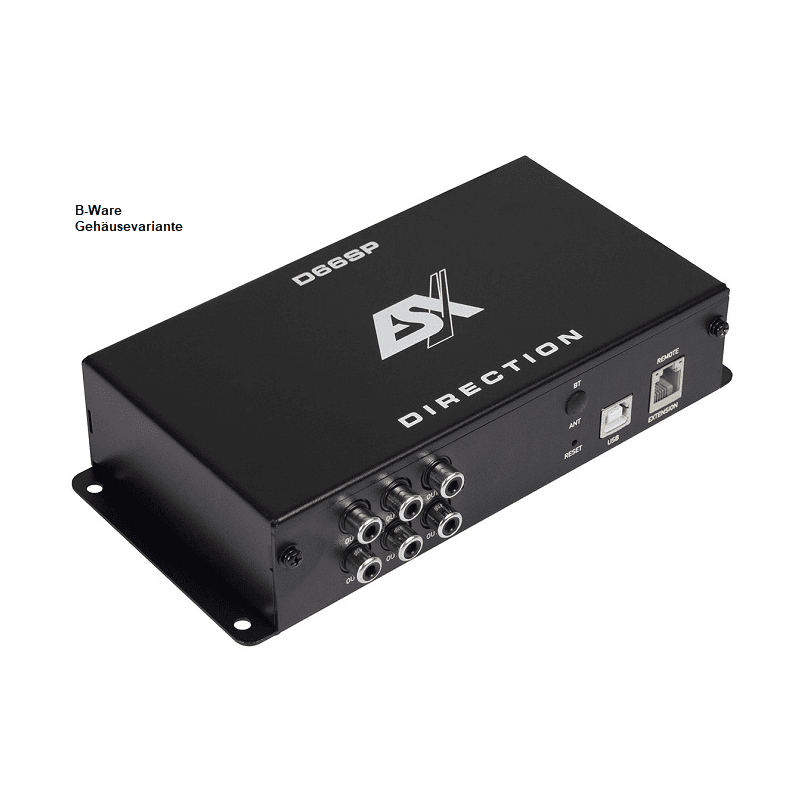

The product is new and unused and is only in the wrong housing due to a production error (see example picture). The housing of the ESX D66SP was used, inside is the technology of the QM66SP, also the engraving on the housing corresponds to the QM66SP, only the housing is wrong.

After the very successful launch of the DIRECTION sound processors (EISA Award for D68SP), ESX heralds the next round with the QUANTUM QM66SP. The new 6-channel processor is integrated into a high-quality aluminum heat sink and comes with even better standard features. Thanks to the integrated Bluetooth receiver, the app version of the ESX DSP Toolkit can be used live and in real time from a smartphone - HD audio streaming included. The LCD remote control RC-DQ, available as an accessory, offers additional operating convenience.

Thanks to state-of-the-art analog/digital converters from AKM Velvet Sound™, the sound processing of the Analog Devices™ 32 bit/295 MHz DSP chips takes place in the full HD audio range at 96 kHz. In addition to audiophile aspects, smooth integration into modern vehicles has also been considered. EPS PRO protection circuitry and high-level inputs with automatic switch-on function (can be jumpered from 1-15 V or 15-40 V) as well as balanced RCA low-level outputs with 6 V/RMS are included as standard. Sound tuning redefined...

Features:
✓ Analog Devices™ DSP chip, 32 bit, 294 MHz, Full HD Audio 96 kHz
✓ Signal converter from AKM Velvet Sound™ A/D 32 bit, D/A 32 bit
✓ HP/LP/BP @ 6-48 dB, phase shift, delay correction 0 ~ 20 ms / 0.01 ms steps
✓ Up to 248 output EQs, 120 input EQs (PEQ/HSLF/LSLF) +/- 12 dB, 0.5 dB steps)
✓ Input mixer, subwoofer control, priority input mode for digital input signals
✓ Input sensitivity: low level 1~6 V/RMS, high level 1~15 or 15~45 V/RMS
✓ Signal-to-noise ratio (A-weighted): Analog input 106 dB, Digital input 111 dB
✓ Distortion factor: Analog input < 0.0015%, Digital input < 0.0009%
✓ Integrated Bluetooth® receiver incl. antenna for controlling the DSP via app and full HD audio streaming
✓ Bluetooth version 5.0, profiles: A2DP/AVRCP, codecs: aptX, aptx LL, aptX HD, AAC, SBC
✓ REM OUT function for external devices, MODE switching input for e.g. convertible tops (Preset Auto Switch)
✓ Optional accessories: RC-DQ (LCD remote control)

Technical data:

Digital 6-channel sound processor

6 x RCA input, balanced

6 x high-level input (via Molex)

1 x optical stereo input, S/PDIF 192 kHz, 24 bit

1 x Bluetooth® Stereo input via audio streaming

1 x USB socket for PC software

1 x RJ45 socket for remote control

6 x RCA output @ 6 V RMS

Dimensions 190 x 35 x 102 mm

Operating instructions
☞(Download)

DSP software
☞(Download)

Test report
☞(Download)

Product of the Year Award
☞(Download)
