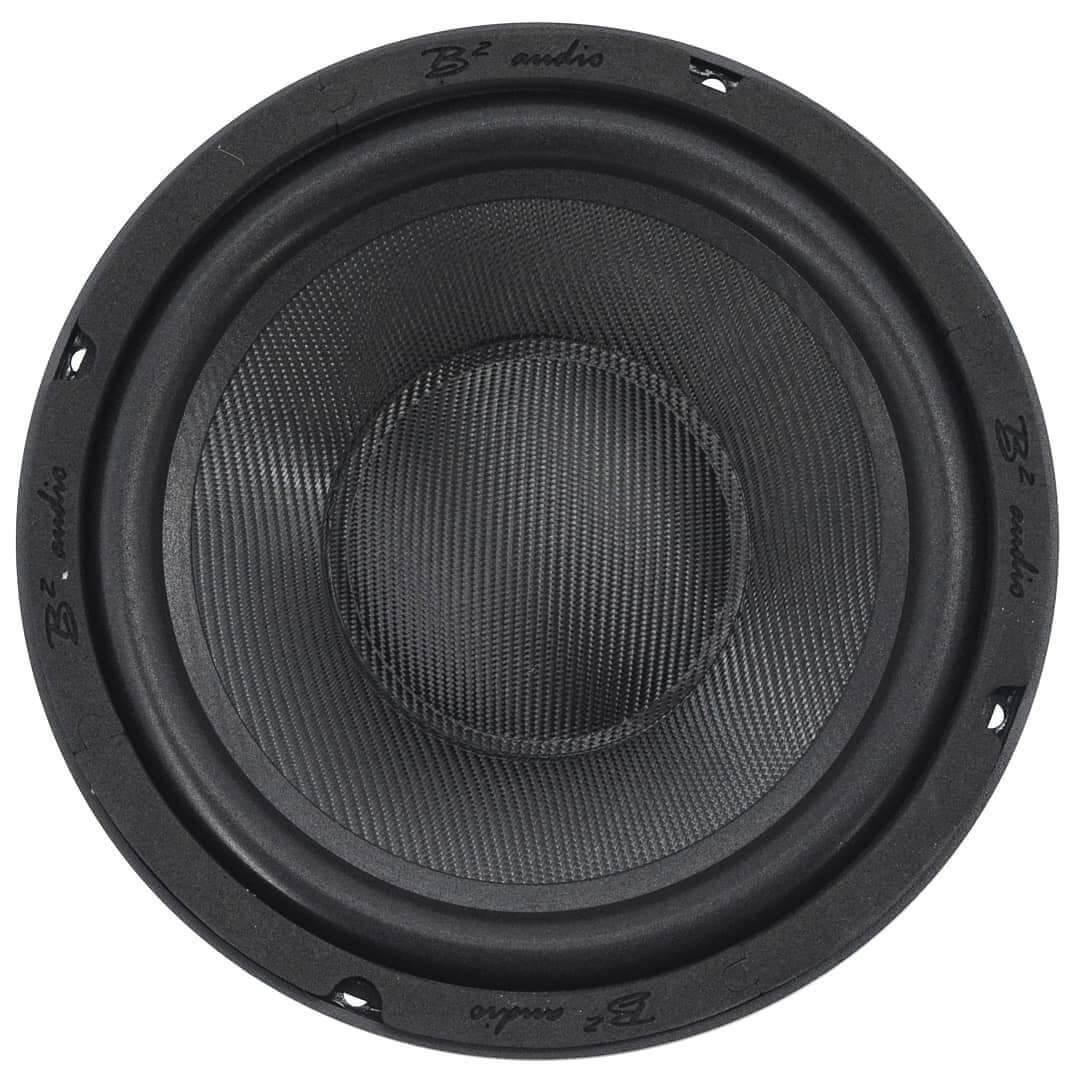

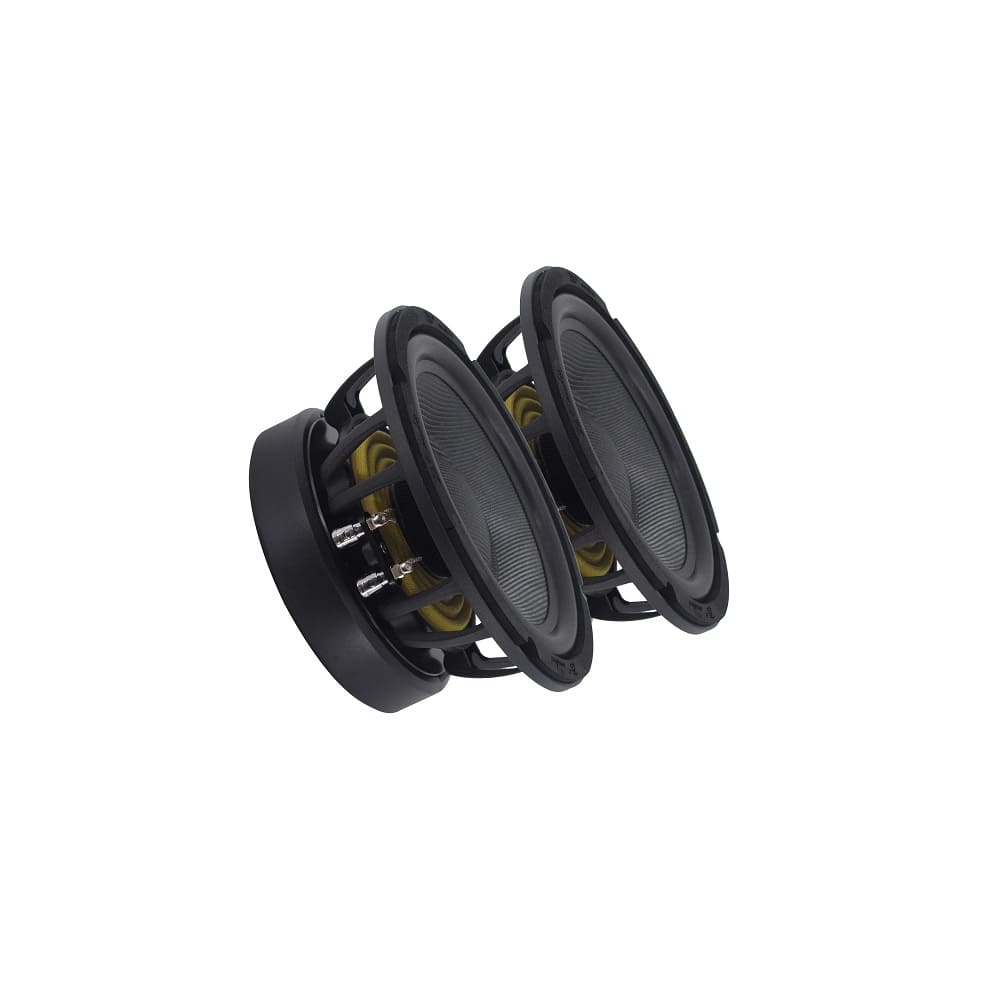

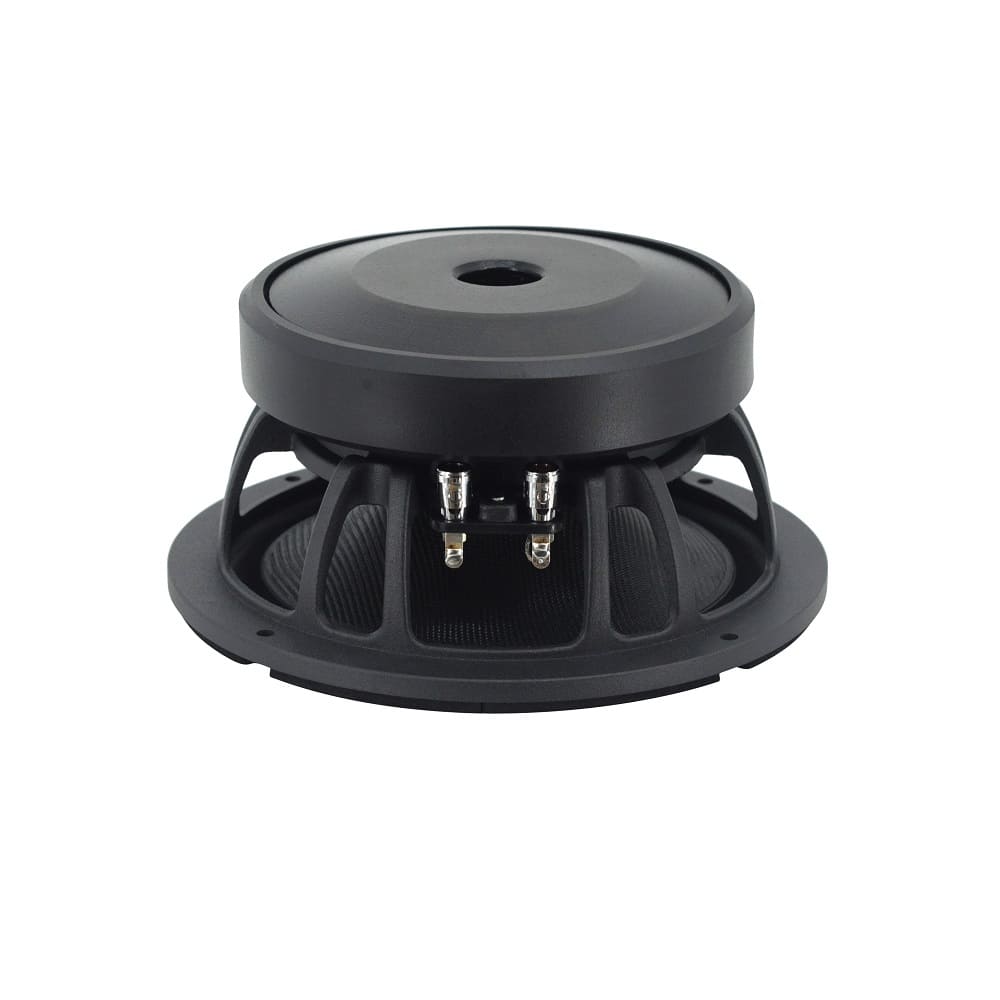

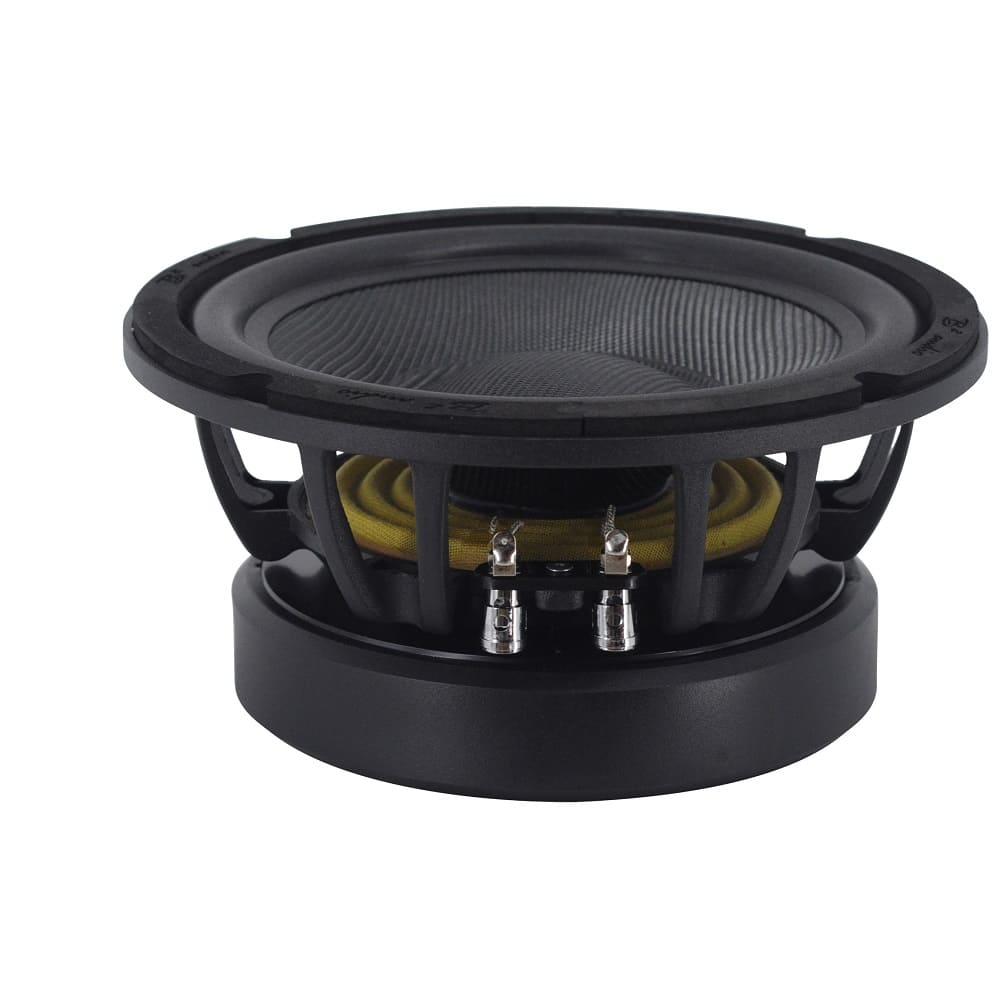

B² Audio REF8W
Regular price
329,00€
Unit price
/
Unavailable
Tax included
Shipping calculated at checkout.

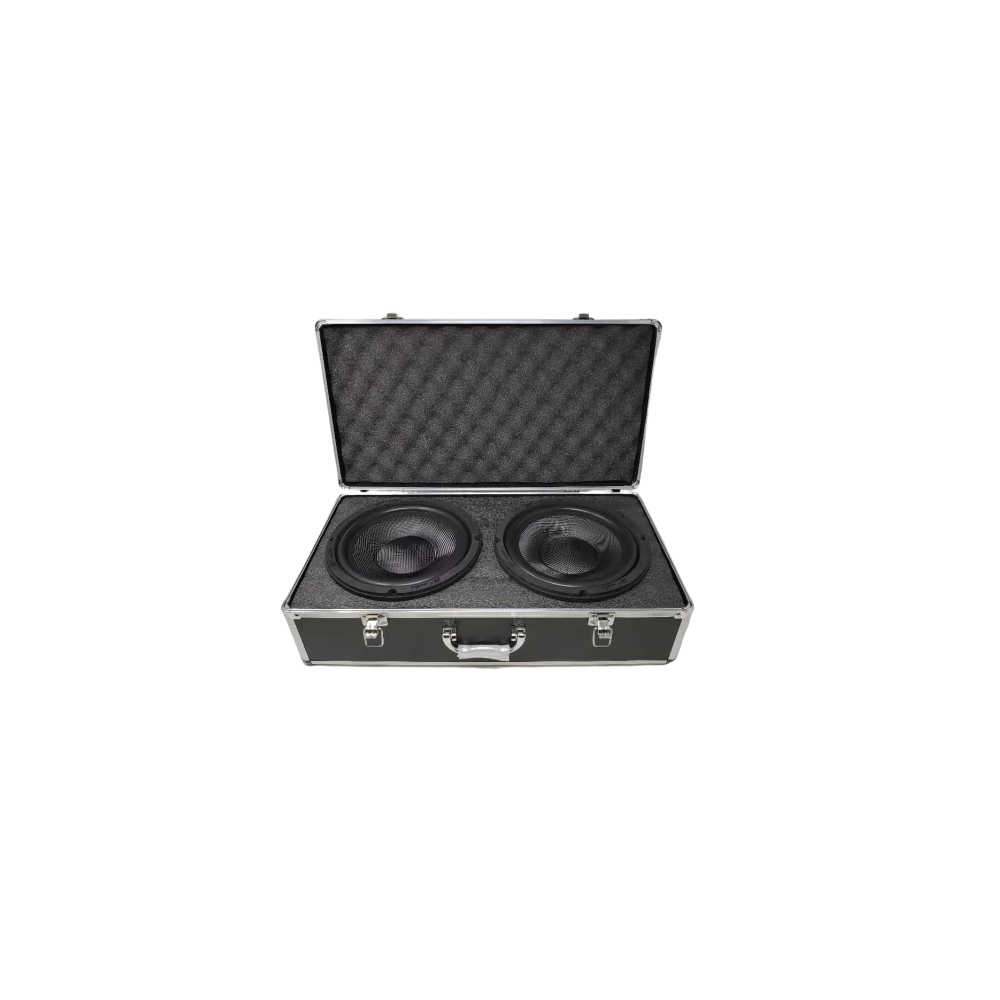

B² Audio REF8W - Pair is backordered and will ship as soon as it is back in stock.
Free shipping from 49€
Free shipping from 49€
Shipping
✓ Free shipping from 49€ within Germany and from 99€ to the EU.
✓ Delivery times vary depending on the product and can be found on the product page, usually 1 - 3 working days for stock items, international shipping times vary, usually 6 - 10 working days.
✓ In most cases, shipping is carried out by DHL, UPS and GLS.
✓ Depending on the product and location, items can also be shipped with other providers.
✓ Tracking will be sent by email after the shipment has been processed.
Normal shipping route
✓ 1 - 40Kg = DHL, UPS and GLS
✓ 40.1 - maximum kg = forwarding agency
✓ Bulky goods = freight forwarder
✓ Customs shipments = DHL, GLS or freight forwarder
Parcel collection
✓ Collection takes place regularly from Monday to Friday, orders received by 3 p.m. are usually disposed of on the same day for goods in stock and transported directly to the parcel center.
5% discount for prepayment
5% discount for prepayment
Receive a 5% pre-payment discount. The discount is automatically deducted in the shopping cart/checkout and is valid for all products. Vouchers or discount codes may be excluded or already combined.
Wiring wizard & port computer
Wiring wizard & port computer
Use our wiring wizard for simple wiring of speakers and subwoofers! The correct connection is important for your amplifier! Low-impedance operation can damage the amplifier! The data sheet shows you which connection the respective amplifier is designed for!
Our port calculator shows you which tuning your enclosure has! The net volume is always particularly important here; calculate the pure chamber of the subwoofer beforehand to arrive at the correct result. The net volume is calculated minus all displacements and is important when designing the enclosure.
Downloads
Downloads
Manufacturer Information
The REF8W reference system from the Danish manufacturer promises enormously high-resolution sound reproduction in the bass range and, as a mid-bass speaker, enables many constellations to get sufficient low bass out of the door. The speaker can be used in both 2-way and 3-way systems thanks to the chosen design, while the low resonance frequency enables a deep separation. The lightweight suspension allows the REF8W speakers to play at low volumes without noticeable losses in the low frequency range.
The REF8W 8-inch woofer uses a paper cone enriched with carbon fibers, this combination improves the audio reproduction enormously. The combination of paper and carbon sounds more natural and direct and gives the lower frequency ranges (<250 Hz) more warmth and precession. The cone also increases rigidity without adding unnecessary weight. Another advantage is that the mechanical limits of the loudspeaker are kept linear.
| Technical data: | |
| FQ range: | 40 Hz ~ 6 KHz |
| SPL: | 95 dB |
| Impedance: | 4 Ohm |
| DC Resistance (RE): | 3.6 Ohm |
| Resonant frequency: | 42 Hz |
| RMS Power: | 200 Watts |
| QMS: | 8.3 |
| QES: | 0.16 |
| QTS: | 0.157 |
| VAS: | 21 L |
| CMS: | 390 um/N |
| MMS: | 32 g |
| Coil size: | 2" |
| BL: | 14.3 |
| Magnet type: | Strontium |
| XMAX: | 5 mm |
| Displacement: | 0.069 cu.ft / 1.94 L |
