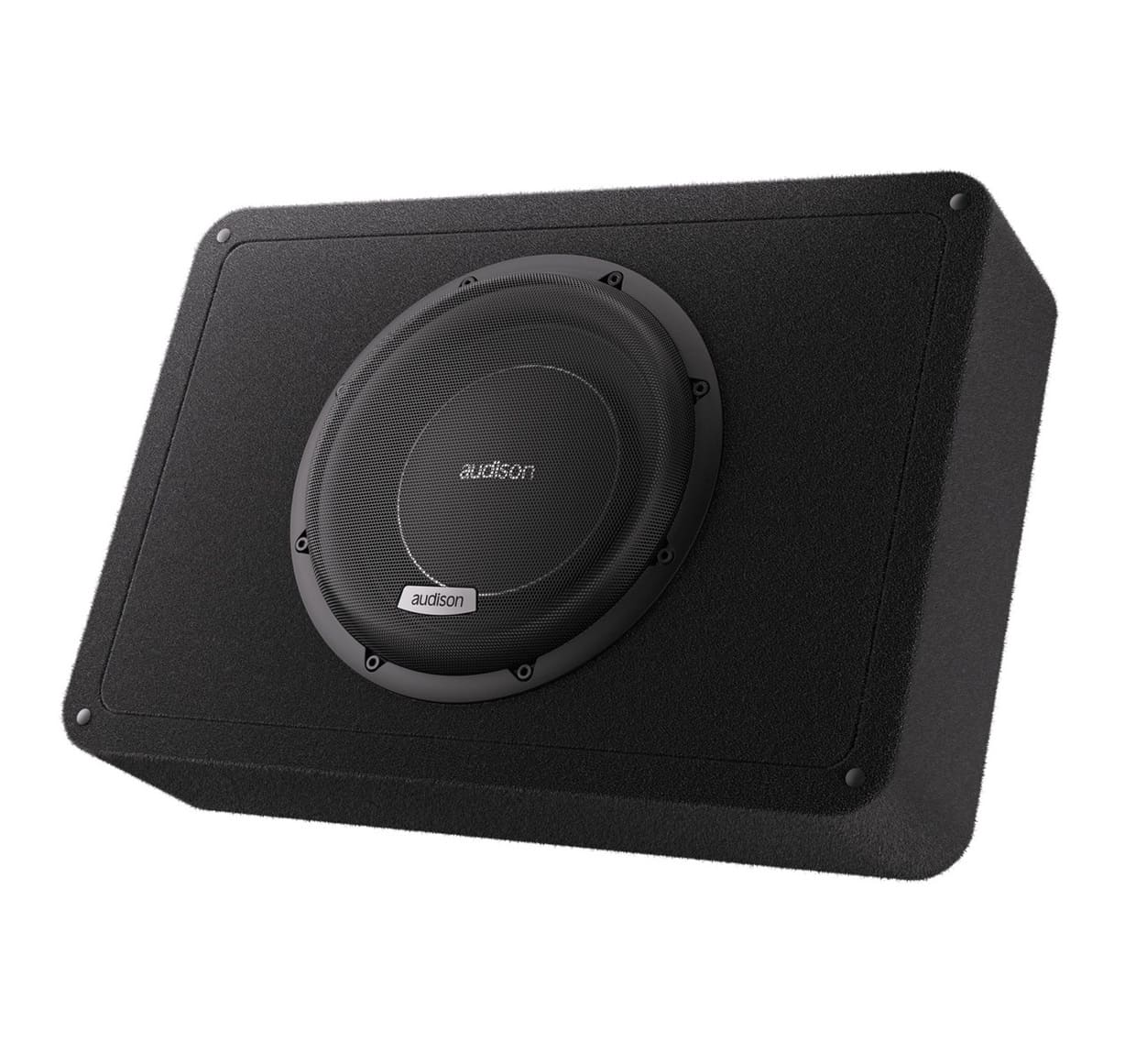

Audison AVBX 10 D4 II

Designed to deliver powerful low bass response in a compact, space-saving format, the AVBX 12 D4 II combines the full power of a 12-inch VOCE II subwoofer with an ultra-compact, sealed enclosure optimized for modern vehicle interiors

Equipped with the AV 12 D4 II driver - with a dual 4-ohm voice coil - the cabinet offers superior power handling and system flexibility, allowing for high-performance configurations without compromising clarity or control

The 15mm high-density MDF structure, reinforced by internal stiffeners, ensures excellent mechanical stability and damping, while the closed-back design produces precise, extended bass with natural decay and definition. The cabinet is designed for true musicality, reproducing every nuance of the low frequency range with depth and precision

The 2S² dual-orientation architecture allows for both down-firing and up-firing installation, adapting to acoustic objectives and available trunk volume. The Sub Smart Plug Terminal simplifies connections with a hybrid interface that offers plug & play and push connect options and is prepared for high-current wiring

Every element of the AVBX 12 D4 II has been designed to express the VOCE II vision: no excess, no compromise - just deep, elegant and controlled bass that enhances every listening moment on the go.


Features:

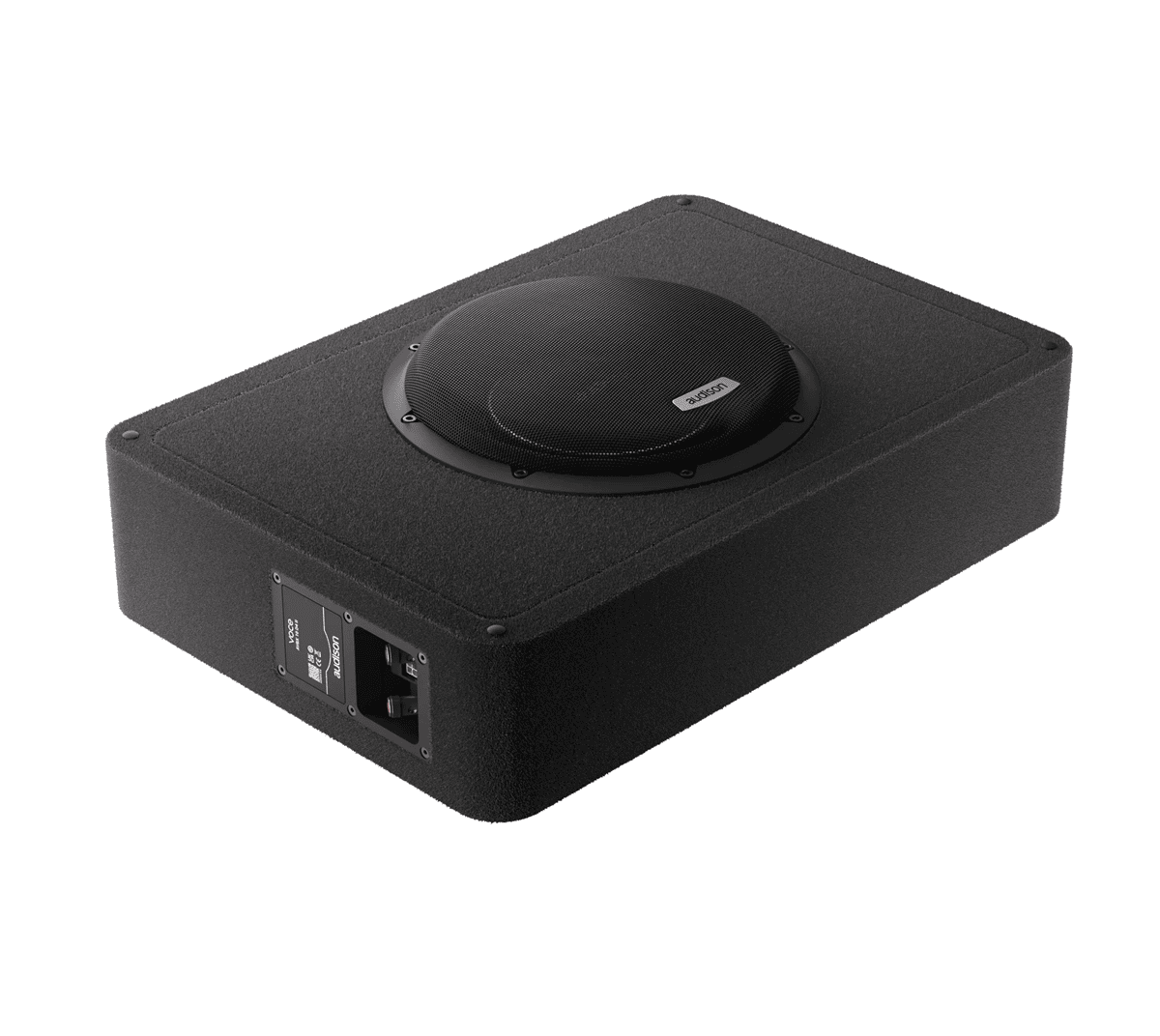

• Ultra-flat, sealed enclosure:
  Designed to maximize performance in the smallest possible space, it provides tight, articulate bass response while saving valuable storage space in the vehicle.

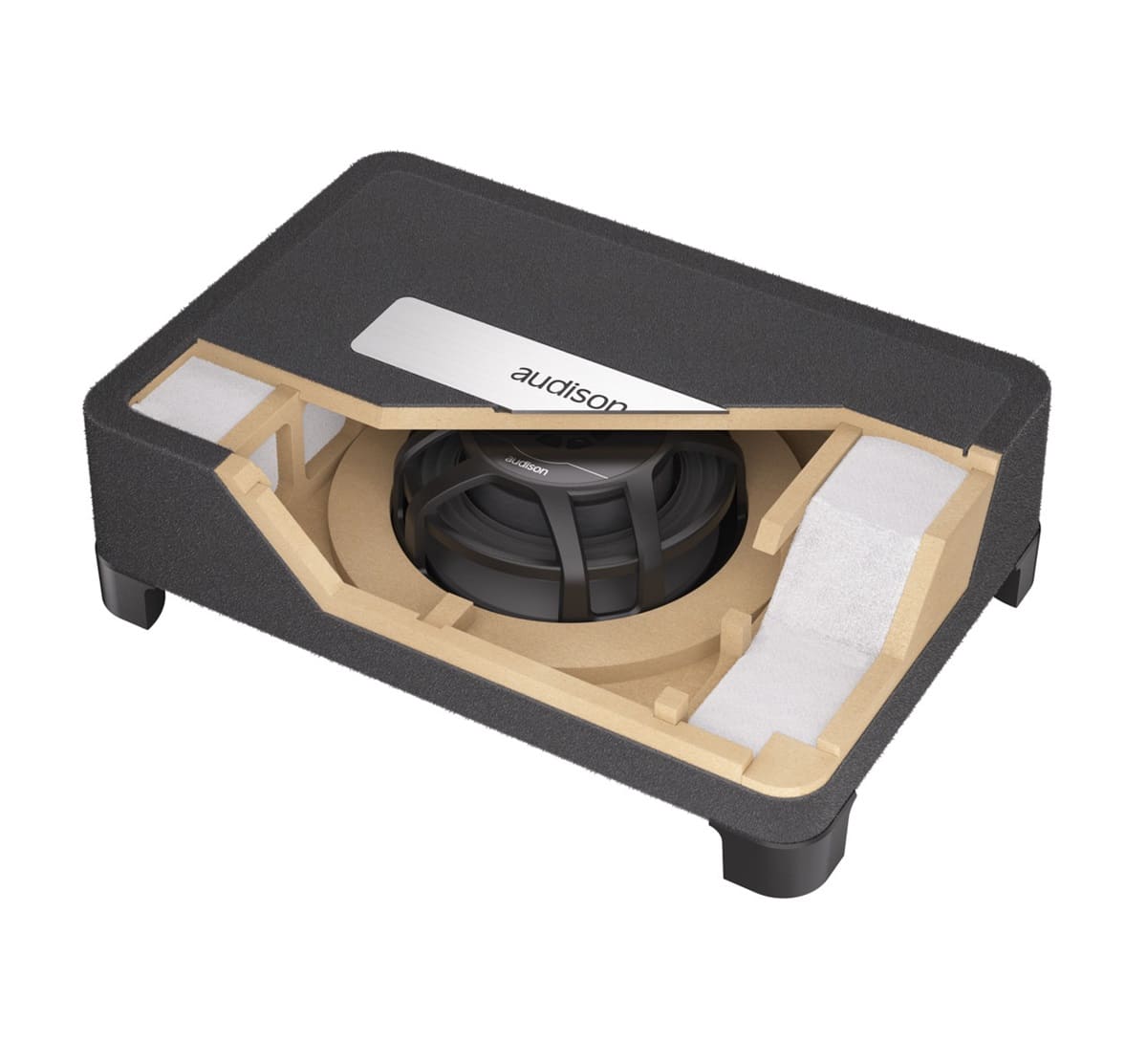

• High density 15 mm wood construction with internal bracing:
  Constructed from robust MDF panels and strategic internal bracing ensures maximum structural rigidity and suppresses unwanted resonance for clean low frequency reproduction.

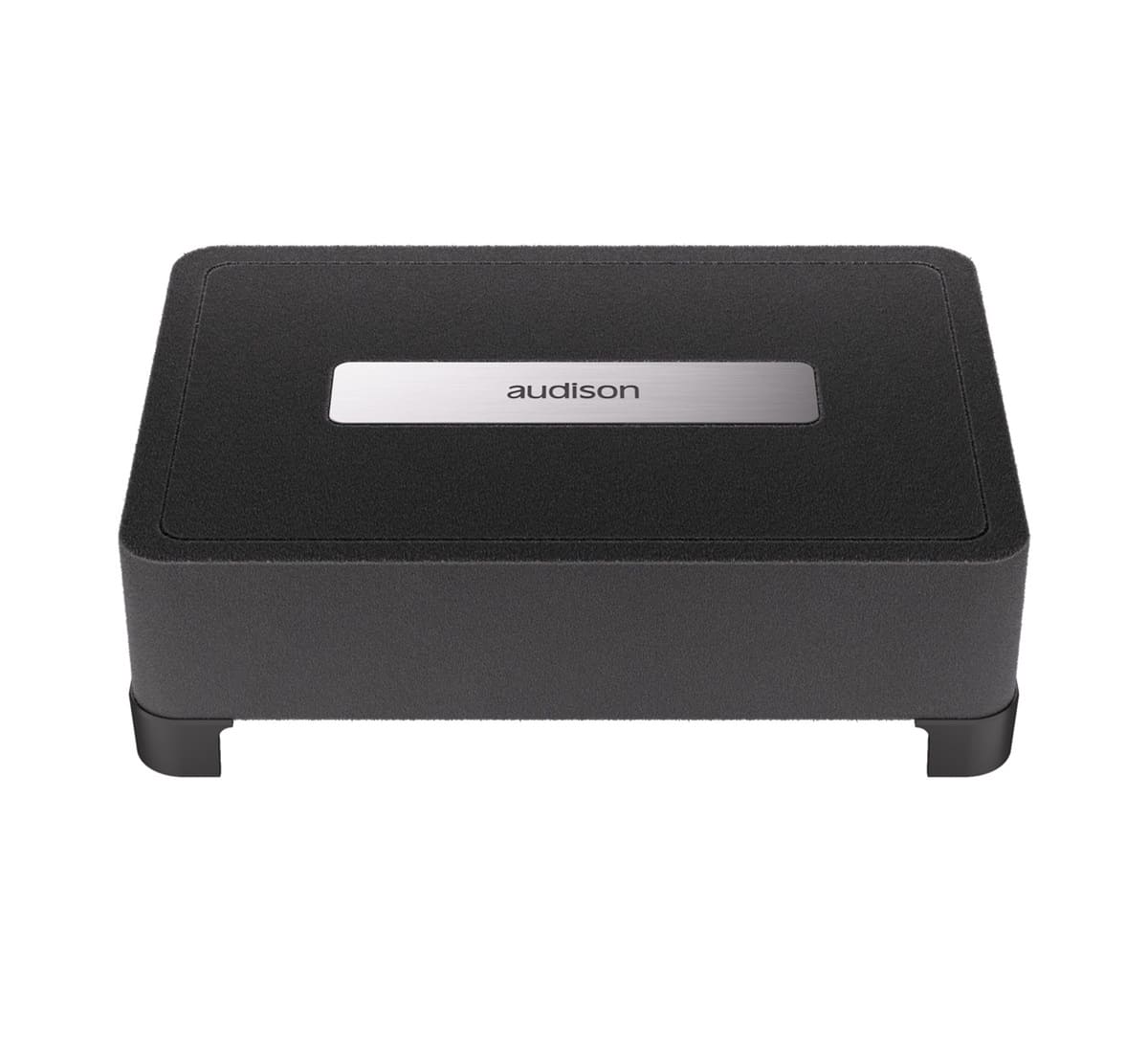

• 2S² architecture with dual orientation:
  Allows both down-firing and up-firing installation, providing installation flexibility depending on acoustic objectives and available space.

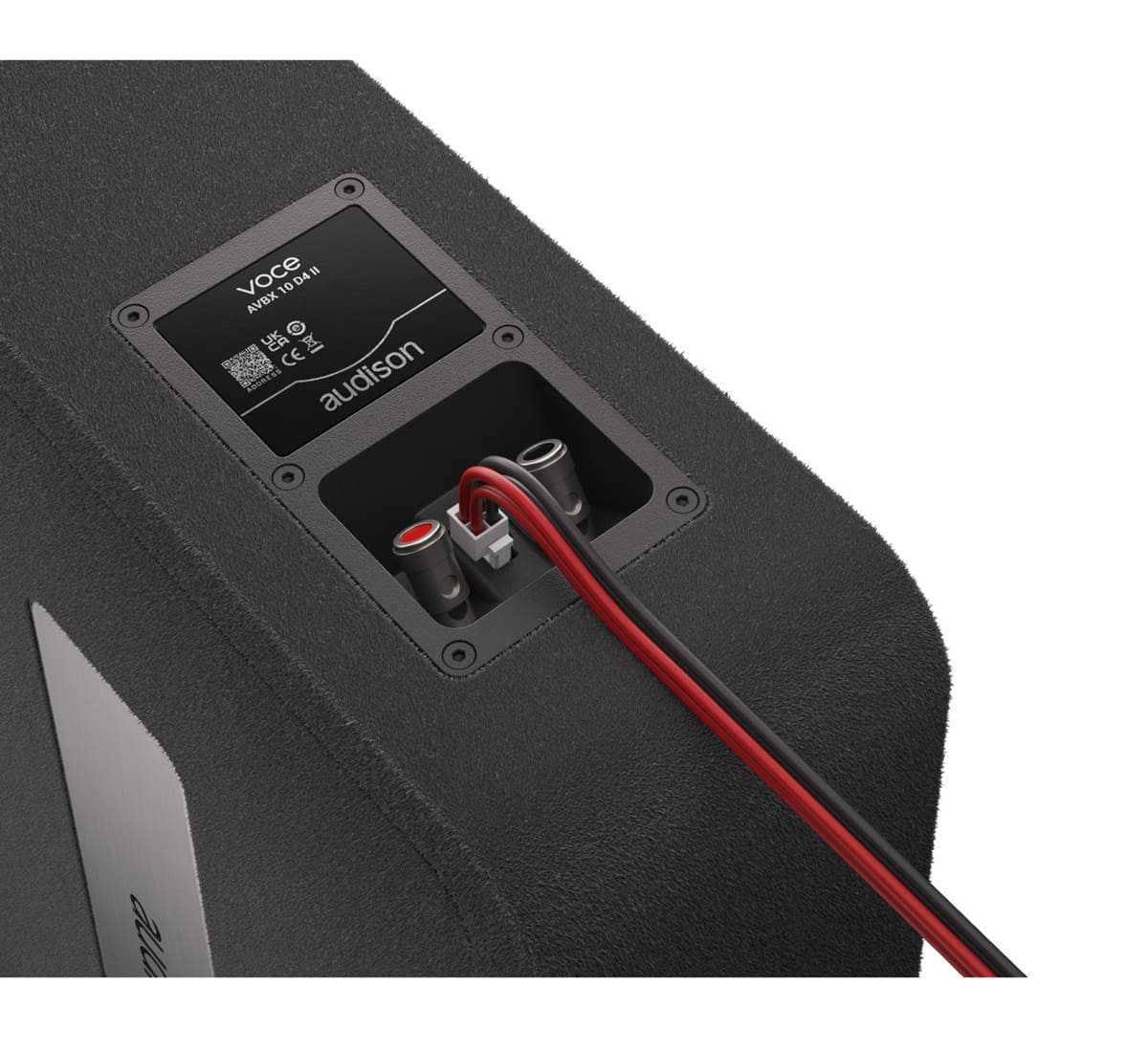

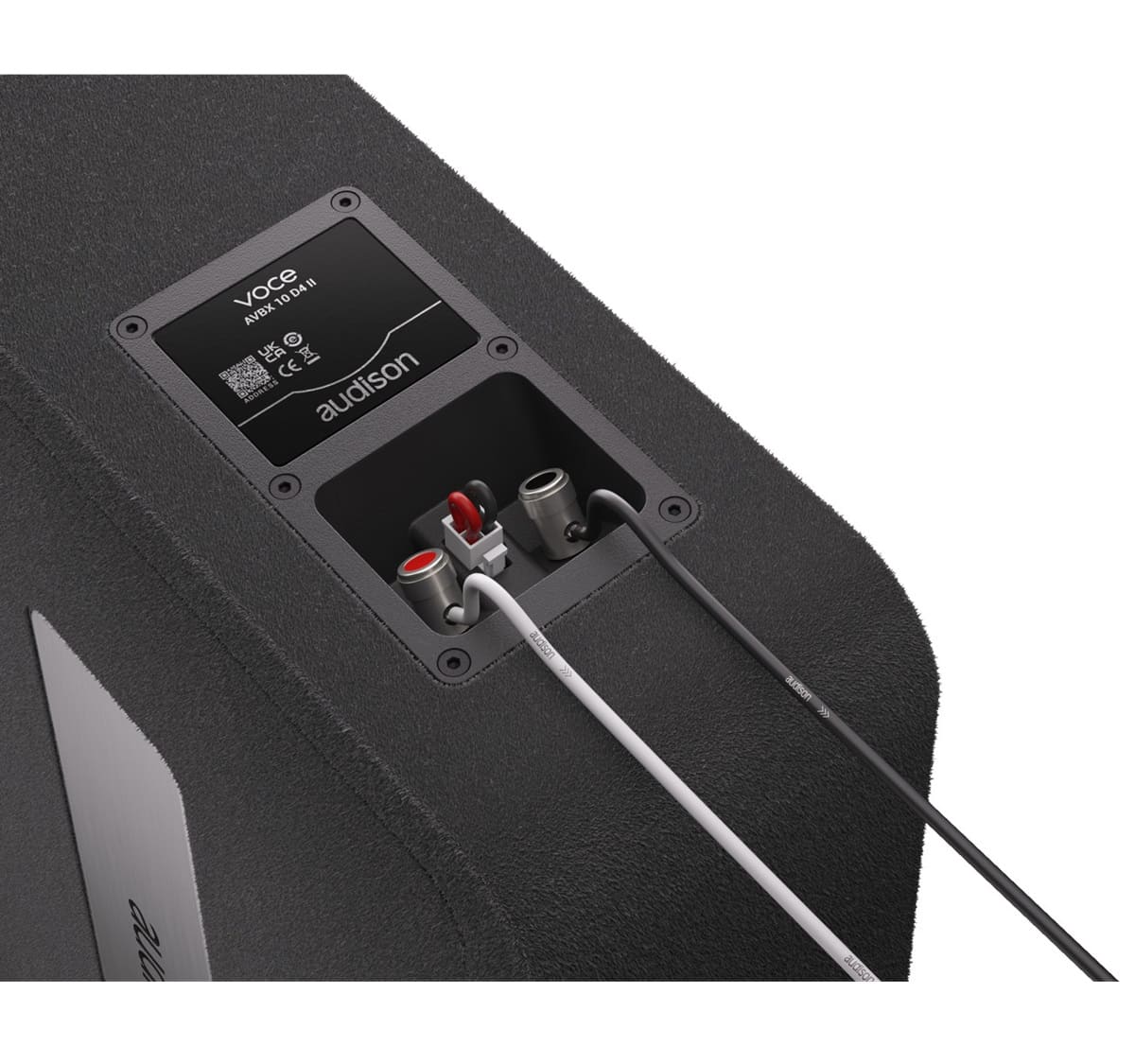

• Sub-Smart-Plug (SSP) terminal with plug & play and push connections:
  Combines quick disconnect capability with traditional push terminals for safe, efficient wiring and hassle-free maintenance.

• Acoustic design matched to VOCE II subwoofer:
  Precisely tuned internal volume and damping ensure perfect integration with the AV 12 D4 II driver for seamless low-frequency performance.

• Space-saving footprint for OEM integration:
  Fits effortlessly into a variety of vehicles, providing an OEM-friendly solution for discreet yet powerful bass reinforcement.

• Refined, minimalist design in line with the VOCE II design language:
  Combines functionality with elegance and matches the VOCE II speakers to ensure a uniform appearance of the system.

• Rigid cabinet damping for precise transient response:
  Minimizes cabinet resonance and coloration for accurate reproduction of kick drums, basslines and low-frequency effects with minimal distortion.

• Support for high-current connections:
  Designed for high current cabling for high performance system configurations without electrical bottlenecks.

• eID technology:
  The integrated Elettromedia eID system enables product registration, access to technical documentation and activation of the extended warranty.



Technical data:

• Nominal diameter:
  250 mm

• Impedance:
  4+4 Ohm

• Load capacity - peak:
  1100 W

• Load capacity - continuous operation:
  550 W

• Frequency response:
  25 - 400 Hz

• Chassis material:
  ALUMINIUM

• Magnet material:
  HIGH DENSITY FLUX FERRITE

• Material of the voice coil:
  CCAW

• Basket material:
  GLASS FIBER

• Cone material:
  POLYPROPYLENE WITH MICA INJECTION

• Surround material:
  RUBBER

• Xmax:
  16.8 mm

• Xmech:
  20 mm

• Voice Coil Winding Height:
  37 mm

• Gap Height:
  7 mm

• Driver Displacement volume:
  0.6 l
